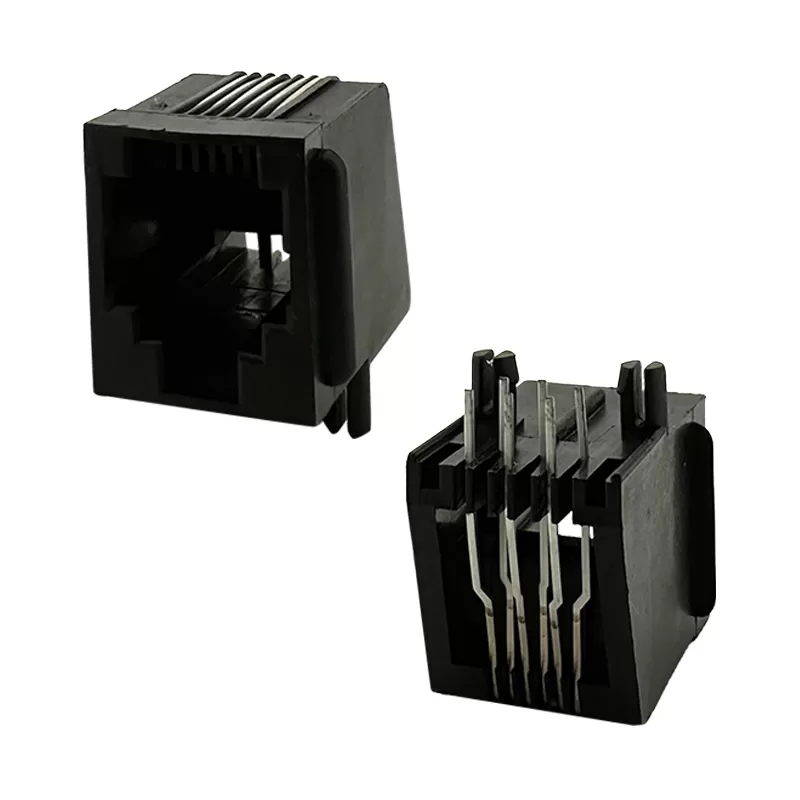

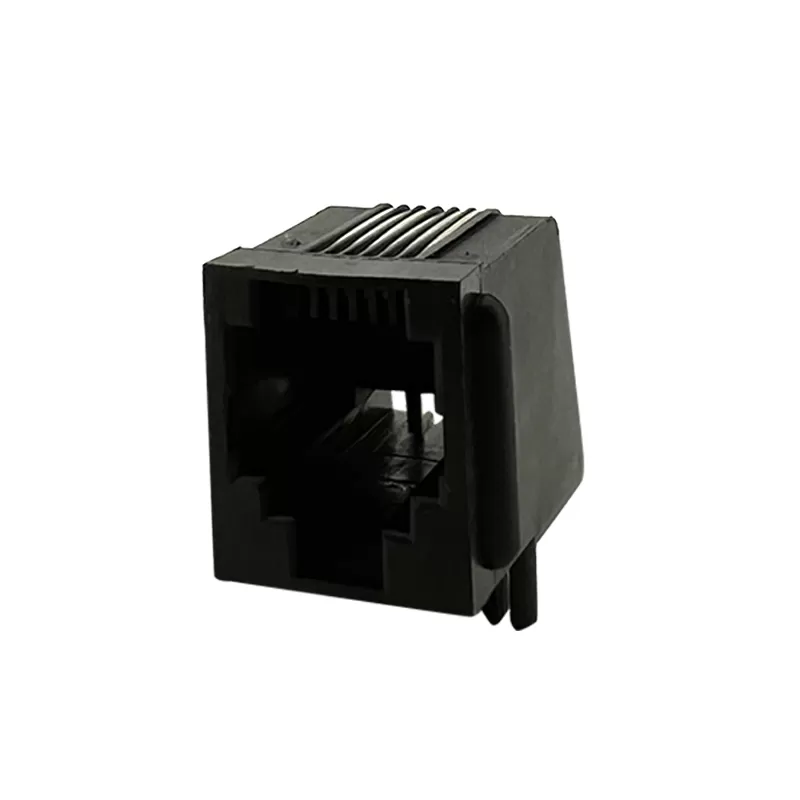

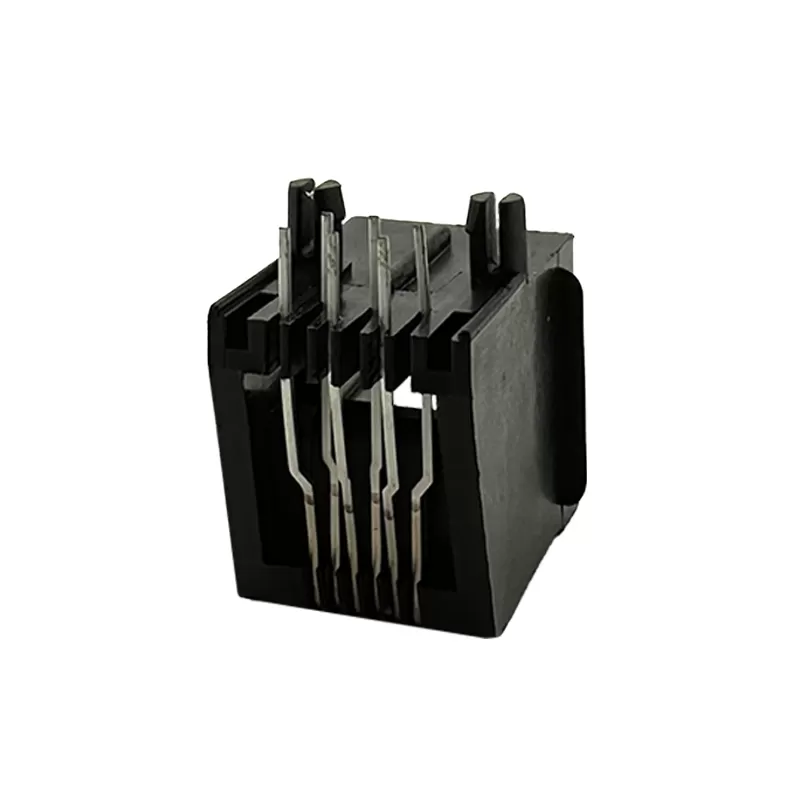

    RJ45-8P8C Jack:RHTLY45-8P8C

    RJ45-8P8C Jack:RHTLY45-8P8C

    Series P/N:RHTLY45-8P8C

    Modular jacks  is available at RHT.

    We have been selling on the markets many years and get good feedback.

    Please view our large selection of  Modular jacks. Any questions,Please contact our sales team to get any service support.

    If you need any samples,quick L/T, and etc, we will try our best to support.


    Inquire Now
    Share
    Product parameter:

    Features

    -Ease of Installation: Designed for straightforward integration into PCBs (Printed Circuit Boards), modular jack panels, and other network infrastructure components.

    -Variants: Available in various configurations including vertical, right-angle, shielded, and with integrated LEDs or transformers to suit different networking requirements and environments.

    -Compatibility: Compatible with standard RJ45 plugs, ensuring interoperability with various Ethernet cables and networking equipment.

    -Construction: Typically made from durable materials such as plastic and metal components, designed to withstand mechanical stress, frequent plugging and unplugging, and environmental factors.


    Applications

    1.Network Equipment

    2.Structured Cabling Systems

    3.Industrial Networking

    4.Telecommunications


    Specifications

    Material:

    Housing:    PBT+Glass Filled Polyester

    Flammability Rating : UL94V-0

    Contacts:  Phosphor Bronze

    Plating:     Gold Plating

    Electrical:

    Voltage Rating:           125VAC

    Current Rating:           1.5A

    Contact Resistance:    30mΩ Max.

    Insulation Resistance: 500MΩ Min.

    Dielectric Strength:    1000VAC Rms 50Hz,1 Min.

    Durability:                  600 cycles Min.

    Operation Temperature:-40°C~+70°C


    Technical Documents

    Please contact us for more information.Features
