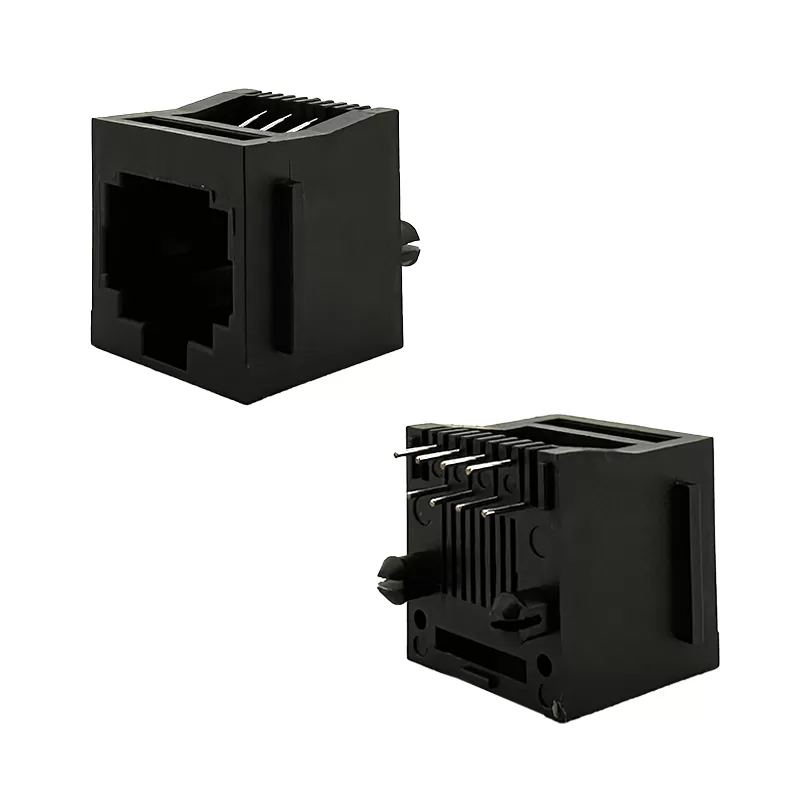

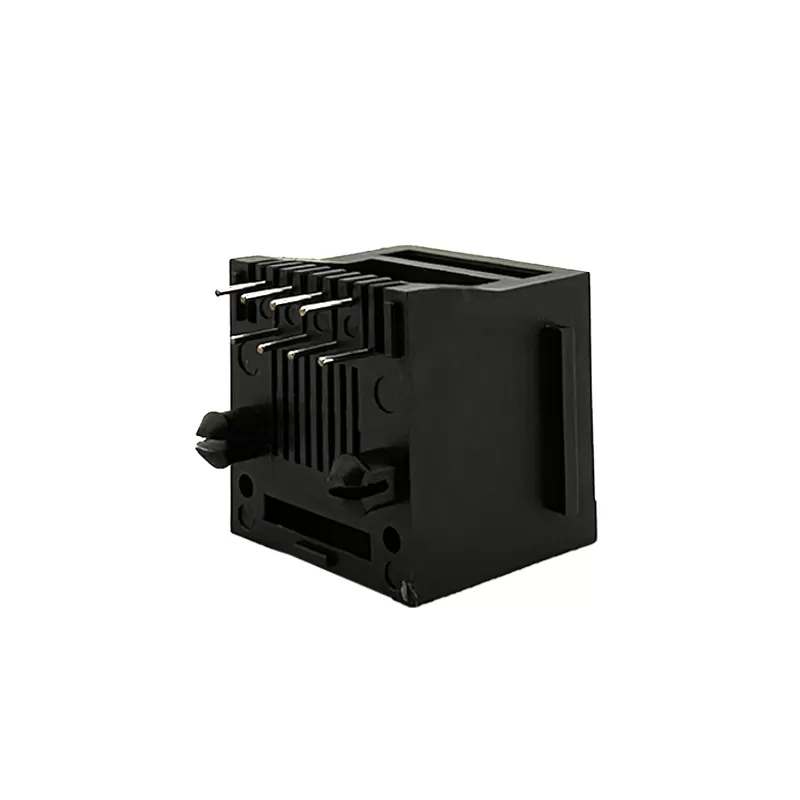

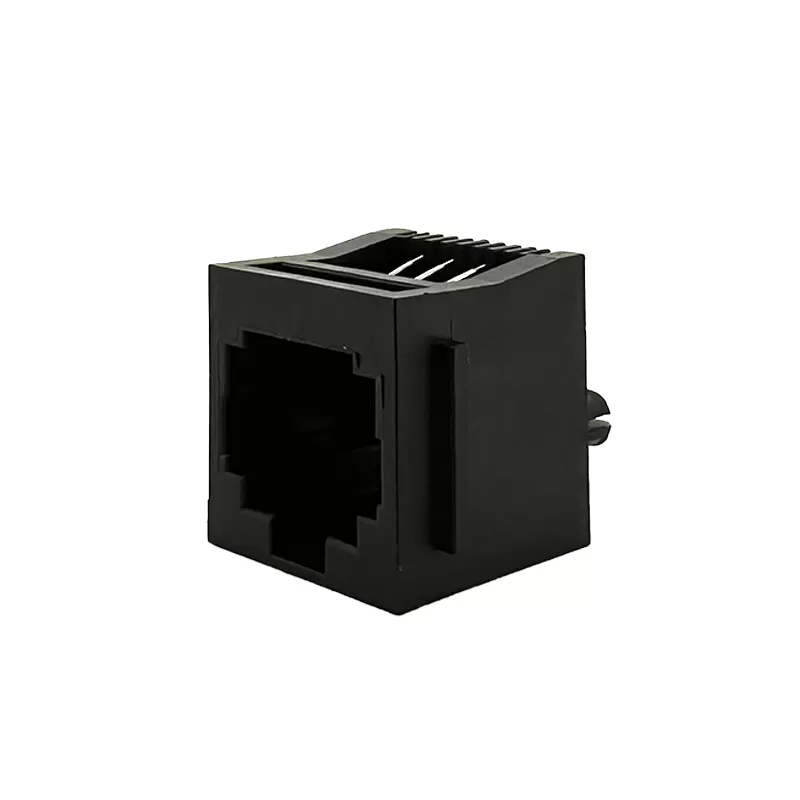

RJ45-8P8C Jack Vertical:RHTLY56-8P8C

Series P/N: RHTLY56-8P8C

Modular jacks is available at RHT.

We have been selling on the markets many years and get good feedback.

Please view our large selection of Modular jacks. Any questions,Please contact our sales team to get any service support.

If you need any samples,quick L/T, and etc, we will try our best to support.

2D(PDF)Drawing

3D(IGS / STP)Drawing

Product parameter:

Features

-Space-Saving Design: Vertical orientation allows for efficient use of space on PCBs (Printed Circuit Boards) and in modular jack panels, ideal for applications where horizontal space is limited.

-Compatibility: Compatible with standard RJ45 plugs, ensuring interoperability with a wide range of Ethernet cables and networking equipment.

-Durability: Constructed from durable materials such as plastic and metal components, designed to withstand frequent plugging and unplugging, mechanical stress, and environmental factors.

-Termination Options: Supports industry-standard termination methods, facilitating reliable connections to Ethernet cables through soldering or crimping.

Applications

1.Telecommunications and VoIP Systems

2.Industrial Automation and Control

3.Residential Networking

4.Security and Surveillance Systems

Specifications

Material:

Housing: PBT+Glass Filled Polyester

Flammability Rating : UL94V-0

Contacts: Phosphor Bronze ∅0.46mm

Plating: Gold Plating

Electrical:
