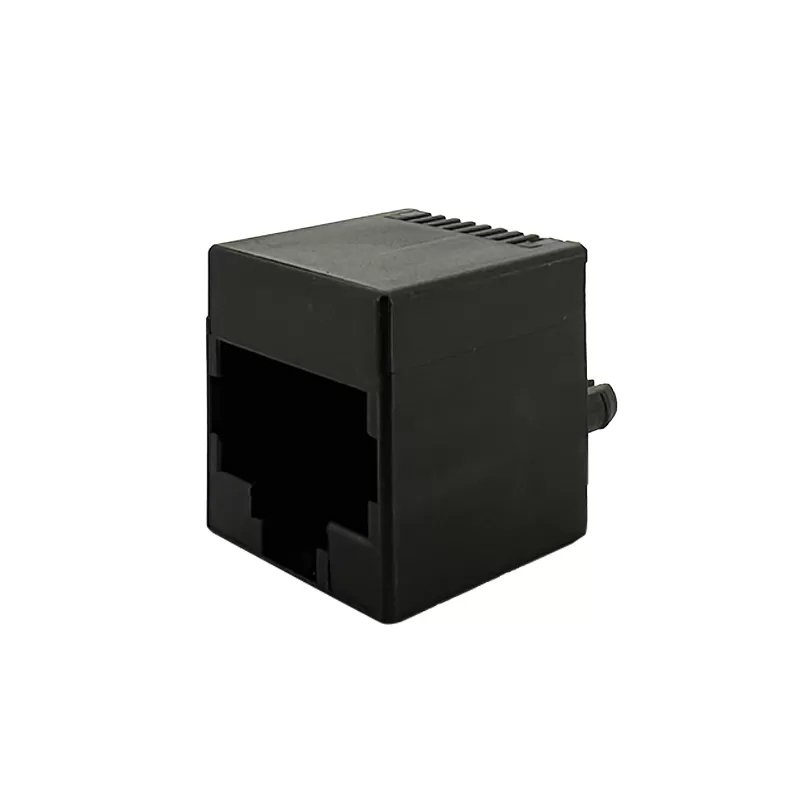

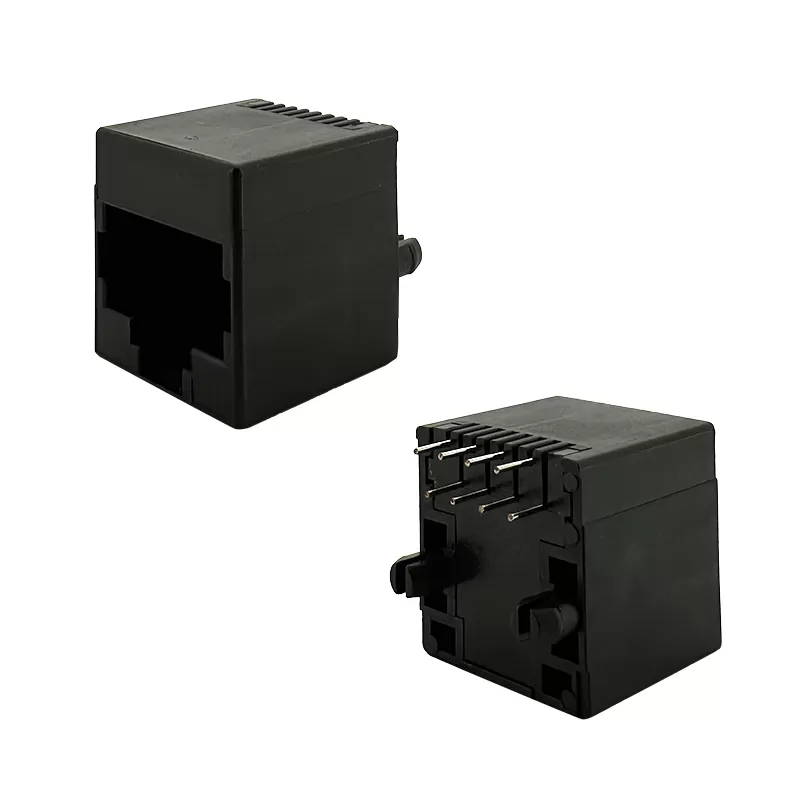

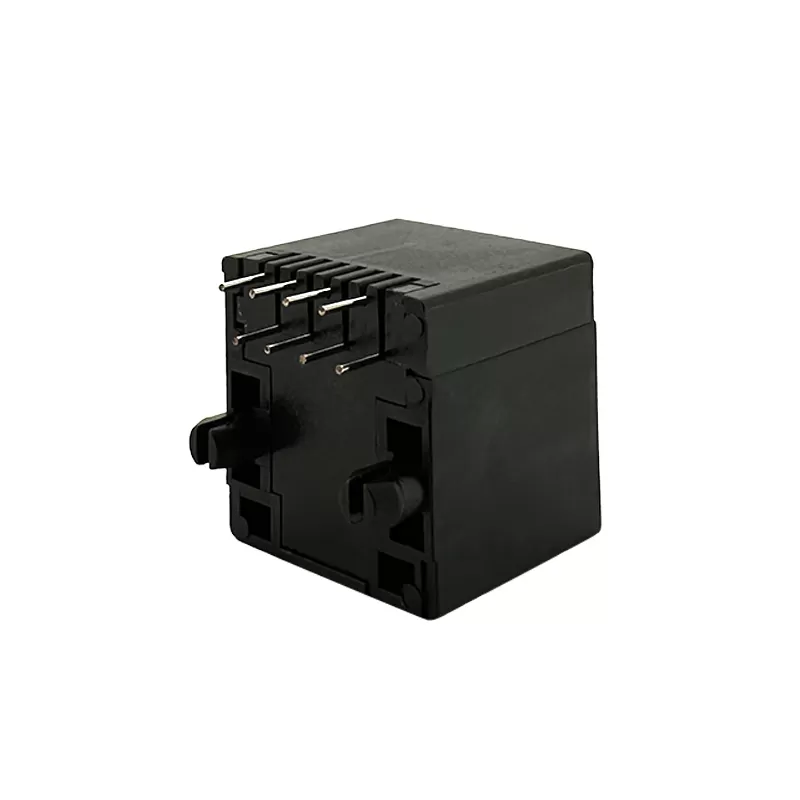

RJ45-8P8C Jack without SHELL:RHTLY57-8P8C

Series P/N: RHTLY57-8P8C

Modular jacks is available at RHT.

We have been selling on the markets many years and get good feedback.

Please view our large selection of Modular jacks. Any questions,Please contact our sales team to get any service support.

If you need any samples,quick L/T, and etc, we will try our best to support.

2D(PDF)Drawing

3D(IGS / STP)Drawing

Product parameter:

Features

-Connector Type: RJ45-8P8C stands for Registered Jack 45 with 8 positions and 8 contacts, accommodating Ethernet cables with eight conductors (8P8C) arranged in four pairs.

-Compact Design: The absence of a shell makes the RJ45 jack more compact and lightweight compared to standard RJ45 connectors with a protective housing.

-Exposed Contacts: The internal contacts and terminals of the RJ45 jack are visible and accessible, typically arranged in a standard configuration to accommodate Ethernet cables.

-Customization: Offers flexibility for custom wiring configurations or adaptations to specific networking requirements without the constraints of a standard RJ45 shell.

Applications

1.Custom Electronics and Prototyping

2.Embedded Systems and IoT Devices

3.Custom Networking Solutions

4.Testing and Diagnostic Equipment

Specifications

Material:

Housing: PBT+Glass Filled Polyester

Flammability Rating : UL94V-0

Contacts: Phosphor Bronze ∅0.46mm

Plating: Gold Plating

Electrical:
