Electric Switch: Definition, Example & Components

What is an Electrical Switch?

An electrical switch is a device engineered to interrupt or redirect the current flow in an electrical circuit. Fundamentally, a switch serves as a control element that can either open (disconnect) or close (connect) a circuit, thereby allowing or preventing the passage of electrical energy. This basic functionality is essential in managing the operation of a wide array of devices, from household appliances to industrial machinery. We recognize that an electric switch not only provides a means for manual or automated control but also acts as a safeguard against potential electrical faults, ensuring the reliability and safety of the overall system.

Electric switches come in various configurations and sizes, each tailored to specific applications. Their design may incorporate mechanical, magnetic, or electronic mechanisms to achieve the desired state of connection. The evolution of switch technology reflects the increasing demand for efficiency, precision, and durability in modern electrical systems.

In-depth Analysis of Electric Switch Components

Electric Switch Components: Actuator, Terminals, Housing, and Contacts. Each playing a significant role in the function of the switch such as enabling physical interaction, connect or disconnect the circuit, housing the switch components and connecting the switch to the device wires.

1. Contacts

The contacts are the core elements that physically open or close the electrical circuit. These conductive elements are typically made from materials such as silver, copper, or gold to ensure high conductivity and resistance to corrosion. When the switch is in the "closed" position, the contacts make contact with each other, forming a continuous electrical path. Conversely, in the "open" position, the contacts are separated, thereby halting the flow of current.

2. Actuator

The actuator is the mechanism that initiates the switching action. This component may take the form of a lever, button, or rotary knob, depending on the design and intended application of the switch. The actuator translates the user's manual input or an automated signal into mechanical motion, effectively moving the contacts between the open and closed positions. In advanced applications, the actuator may be integrated with electronic control systems to enhance responsiveness and precision.

3. Terminals

Terminals serve as the connection points for the electrical wiring of the switch. They provide a secure interface between the switch and the broader circuit, ensuring that electrical energy is efficiently and safely transmitted. Terminals are designed to accommodate various wire gauges and are engineered to maintain a stable connection under different operating conditions.

4. Arc Suppression Components

During the switching process, especially under high-current conditions, arcs may form between the contacts as they separate. To mitigate the effects of these arcs—which can lead to contact degradation and reduced lifespan—switches often incorporate arc suppression components. These components, which might include resistor-capacitor (RC) networks or magnetic blowouts, serve to quench the arc rapidly, protecting the contacts from excessive wear.

5. Insulation and Housing

The overall insulation and housing of the switch are crucial for ensuring both user safety and device durability. The housing is typically constructed from high-grade plastics or ceramics that provide robust mechanical protection and effective insulation. This enclosure not only protects internal components from environmental hazards such as dust and moisture but also prevents accidental contact with live electrical parts.

Switch Types & Classifications

Electric switches are categorized based on several criteria, including their method of operation, design, and intended use. Understanding these classifications is essential for selecting the appropriate switch for any given application.

1. Based on Operation Method

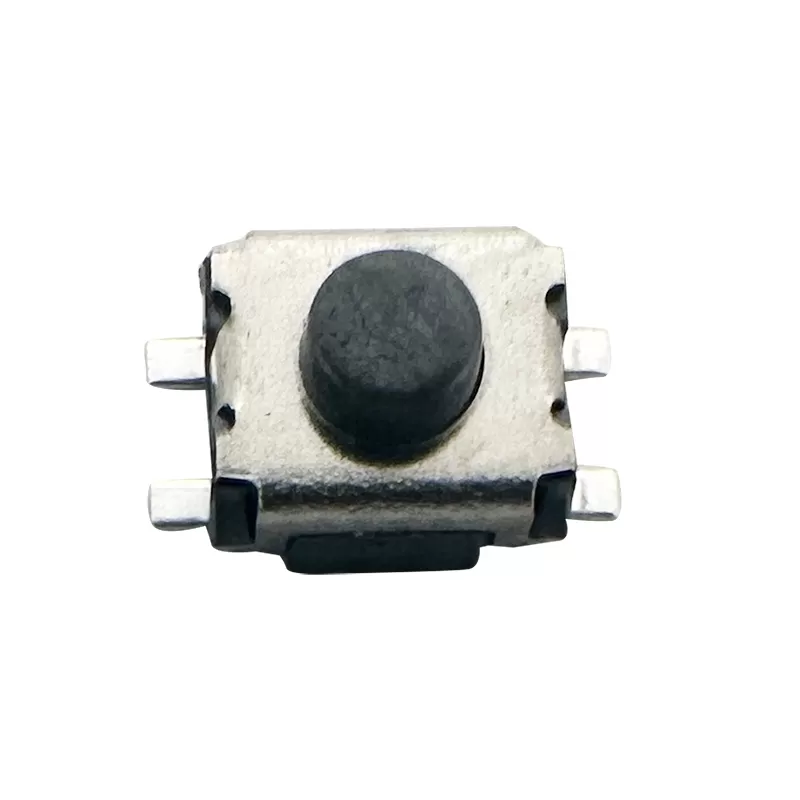

- Manual Switches: These switches require direct human intervention to change their state. Common examples include toggle switches, push-button switches, and rocker switches. They are widely used in everyday applications where simplicity and ease of use are paramount.

- Automatic Switches: Designed to operate without human intervention, automatic switches are triggered by changes in electrical conditions, such as voltage, current, or temperature. Examples include thermal switches and circuit breakers, which serve to protect circuits from overloads.

- Electronic Switches: Utilizing semiconductor technology, electronic switches such as transistors and thyristors offer rapid switching capabilities and are integral to modern electronic devices. These switches are characterized by their high-speed operation and reliability in digital circuits.

2. Based on Configuration

- Single-Pole, Single-Throw (SPST): The simplest type of switch, SPST, can either connect or disconnect a single circuit. It is the most fundamental design used in a myriad of applications.

- Single-Pole, Double-Throw (SPDT): SPDT switches allow one input to be routed to one of two outputs. This configuration is ideal for applications requiring the selection between two different circuits.

- Double-Pole, Double-Throw (DPDT): DPDT switches control two independent circuits simultaneously, making them suitable for more complex applications where multiple circuits must be managed concurrently.

3. Based on Application

- Safety Switches: These are specifically designed to ensure safe operation under hazardous conditions. They often incorporate additional features such as lockable covers or key-operated mechanisms to prevent unauthorized access.

- Industrial Switches: Engineered to withstand harsh environmental conditions, industrial switches are robust, durable, and capable of handling high currents and voltages. Their design often includes reinforced housings and advanced arc suppression techniques.

How Does an Electric Switch Work?

At its core, an electric switch functions by altering the state of a circuit from closed to open or vice versa. The mechanism of action can be understood through a detailed examination of its operational stages.

Closed State

When the switch is in the closed state, the contacts are brought together, establishing a continuous conductive path. In this position, the circuit is complete, allowing current to flow freely. This is typically the desired state for powering a device or system, as it enables the flow of electrical energy necessary for operation.

Open State

Conversely, when the switch is actuated to the open state, the contacts are physically separated, disrupting the conductive path. This action effectively interrupts the current flow, rendering the circuit inactive. This state is critical for controlling the operation of the connected device and for protecting the circuit from potential overloads or faults.

Transition Mechanism

The transition between the open and closed states is governed by the actuator mechanism. Upon activation—whether manually or automatically—the actuator exerts force on the contacts, either bringing them together or pulling them apart. In switches with arc suppression systems, this transition is accompanied by measures to rapidly extinguish any transient arcs that might form. The precision and speed of this transition are crucial, particularly in applications where rapid switching is required to maintain system stability and safety.

Electrical Characteristics

Electric switches are designed to handle specific voltage and current ratings. These ratings determine the maximum electrical load that the switch can manage safely. Overloading a switch can result in contact degradation, excessive arcing, or even complete failure of the device. Therefore, the design and selection of a switch must take into account the operational parameters of the circuit it is intended to control.

Manual Switch Operation

Manual switches remain one of the most common forms of switching devices due to their simplicity and reliability. Their operation is straightforward yet precise, ensuring that users can control electrical circuits with confidence and safety.

User Interaction and Mechanical Movement

In a manual switch, the user typically engages with the actuator directly—whether through a toggle, push-button, or rocker mechanism. This interaction is designed to be intuitive and ergonomic, ensuring that the transition between states is both smooth and deliberate. The mechanical movement generated by the user is transmitted through internal linkages, which in turn operate the contacts.

Reliability and Durability

The design of manual switches emphasizes durability and ease of maintenance. High-quality materials are used to fabricate the contacts and actuator components, ensuring that the switch can withstand repeated use over extended periods. Furthermore, the robust design minimizes wear and tear, thereby extending the operational lifespan of the device.

Conclusion

In conclusion, the electric switch is a pivotal component in modern electrical systems, offering both simplicity and sophistication in its design and operation. By understanding the detailed mechanics of its components—from the contacts and actuator to the arc suppression elements and housing—we can appreciate the engineering excellence that underpins its functionality. The diverse types and classifications of switches ensure that there is an ideal solution for virtually every application, whether it involves manual control or automated response. As we continue to innovate and refine these devices, the electric switch remains a cornerstone of electrical engineering, embodying the balance between functionality, safety, and reliability.
