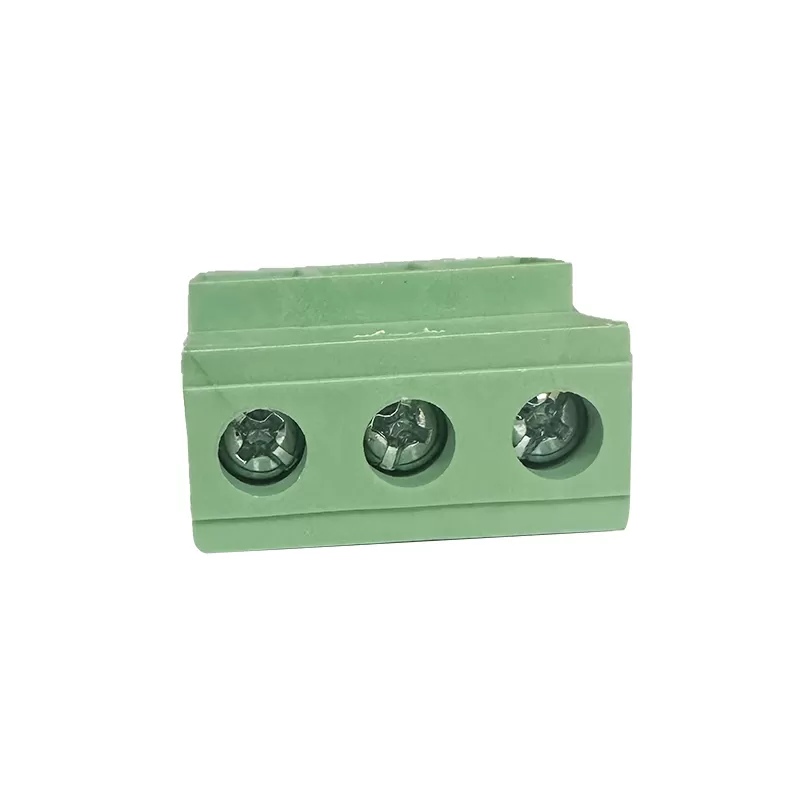

10.16mm Screw Terminal Block Rising clamp：RHTBY16-10.16

Features

-Pitch Size: Refers to the center-to-center spacing between adjacent terminals.

-Conductor Size: Specifies the range of wire sizes that can be accommodated, typically indicated in AWG or mm².

-Current Rating: Indicates the maximum current that the terminal block can handle safely.

-Voltage Rating: Specifies the maximum voltage the terminal block can withstand.

Applications

1.Testing and Prototyping

2.HVAC Systems

3.Renewable Energy Systems

4.Instrumentation

Specifications

Material

Screw:         M4.0, steel,Zn plated

Cage:          Brass, Nickel plated

Pin header:  Brass, Tin plated

Housing:      PA66, UL94V-0,Green

Electrical

Rated voltage:  300V

Rated current:  60A

Wire range:      20~6AWG  10mm2

Contact Resistance: 20 m Ω

Insulation resistance:  500MΩ/DC1000V

Withstand voltage:      AC2500V / 1 min

Mechanical

Temp. Range:   -40 ° C ~ + 105 ° C

Soldering:         250 ° C   5Sec.  Max.

Torque:            1.2 Nm (10.5 Lb.) in

Strip length:     9~10 mm

Technical Documents

Please contact us for more information.Features
