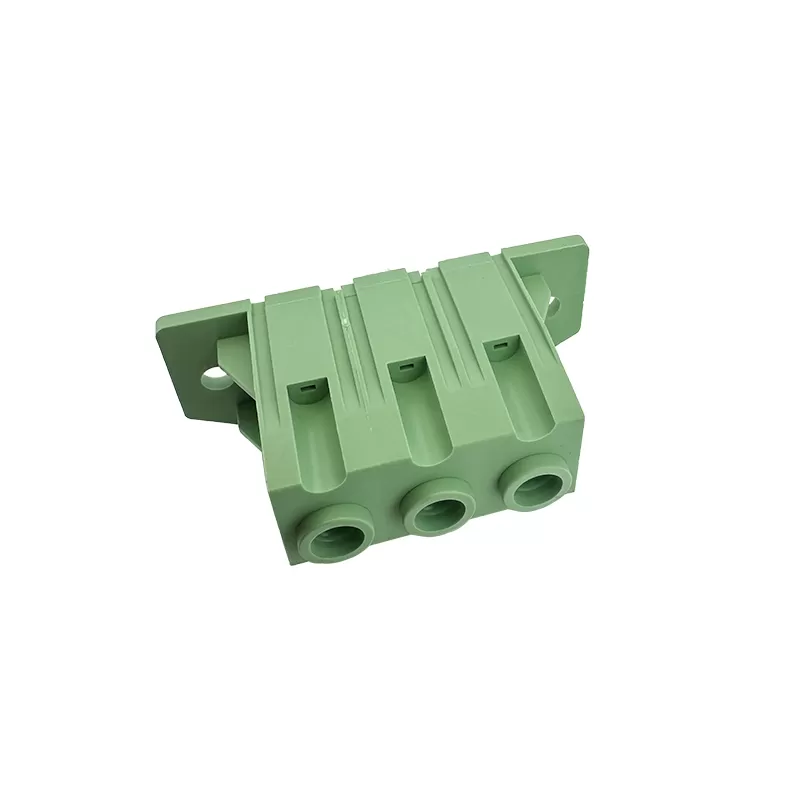

15.0mm Screw Terminal Block Rising clamp：RHTBY70M-15.0
PCB Terminal Block Rising clamp is available at RHT.
We have been selling on the markets many years and get good feedback.
Please view our large selection of PCB Terminal Block Rising clamp. Any questions,Please contact our sales team to get any service support.
If you need any samples,quick L/T, and etc, we will try our best to support.
Features
-Material: Terminal blocks are commonly made from materials such as brass, stainless steel, or tin-plated copper, chosen for their conductivity and durability.
-Mounting Type: Describes how the terminal block is fixed to a surface, often via screws, clips, or DIN rail mounting.
-Rising Clamp Mechanism: Allows for easy insertion and removal of wires by turning a screw to open and close the clamp, ensuring a secure connection.
-Wire Protection: Some terminal blocks may feature mechanisms to protect wires from accidental damage or strain, enhancing durability.
Applications
1.Industrial Control Panels
2.Power Distribution
3.Field Wiring
4.HVAC Systems
Specifications
Electrical
Rated voltage:600V
Rated current:115A
Contact resistance: 20mΩ
Insulation resistance: 500MΩ/DC500V
Withstanding Voltage: AC2200V/1Min
Wire range:20-2AWG3.5mm²
Material
Screws: M5steel Zinc plated
Pin header: Brass, Sn plated
Housing: PA66, UL94V-0
Mechanical
Temp. Range: -40ºC~+105ºC
MAX Soldering: +250ºC for 5 Sec.
Torque: 2.0Nm (10.6lb.in)
Strip length:17~18mm
Technical Documents
Please contact us for more information.Features
