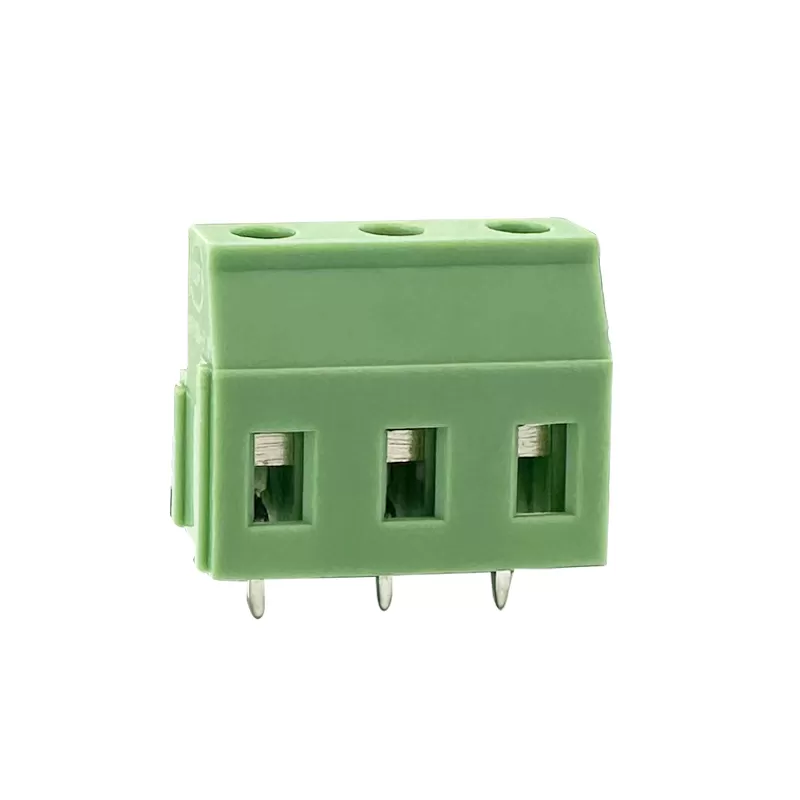

7.50mm & 7.62mm Screw Terminal Block Rising clamp：RHTBY29-7.50&7.62

Features

-Material:Terminal blocks are commonly made from materials like brass, with a tin-plated surface to prevent corrosion and improve conductivity.

-Mounting Options:They may come with options for PCB (Printed Circuit Board) mounting or chassis mounting, depending on the application requirements.

-Current Rating:They are designed to handle specific current ratings, typically ranging from a few amps to tens of amps, depending on the size and construction.

-Voltage Rating:Voltage ratings can vary but are typically suitable for low to medium voltage applications.

Applications

1.Industrial Control Systems

2.Power Distribution

3.Renewable Energy:

4.Consumer Electronics

Specifications

Electrical

Rated voltage:300V

Rated current:20A

Contact resistance: 20mΩ

Insulation resistance: 500MΩ/DC500V

Withstanding Voltage: AC1600V/1Min

Wire range:26-12AWG2.5mm²

Material

Screws: M3 steel Zinc plated

Pin header: Brass, Sn plated

Housing: PA66, UL94V-0

Mechanical

Temp. Range: -40ºC~+105ºC

MAX Soldering: +250ºC for 5 Sec.

Torque: 0.5Nm (10.6lb.in)

Strip length: 6~7mm

Technical Documents
