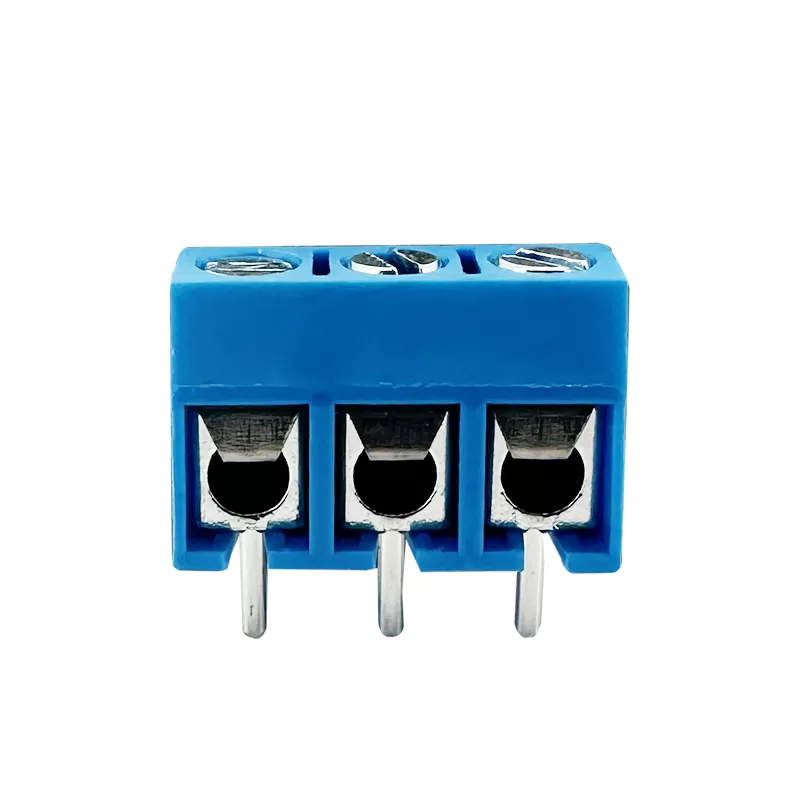

DG301 PCB Terminal block 5.0mm Pitch :RHTBY01-5.00
PCB Terminal Block wire protector is available at RHT.
We have been selling on the markets many years and get good feedback.
Please view our large selection of PCB Terminal Block wire protector. Any questions,Please contact our sales team to get any service support.
If you need any samples,quick L/T, and etc, we will try our best to support.
DG301
Features
-Insulation Material: PBT (Polybutylene Terephthalate) with UL94V-0 flammability rating
-Wire Protection: Incorporates wire protectors to prevent damage during installation
-Industrial Control Systems: Interfacing with PLCs, relays, and automation controllers
-Test Equipment: Providing modular interfaces for test signals and probes
Applications
1.Power Distribution
2.Industrial Control Systems
3.Motor Control and Drives
4.Building and Home Automation
Specifications
Material
Screw: M2.5, Steel,Zn plated
Shrapnel: Phosphor bronze, Nickel plated
Pin header: Brass, Tin plated
Housing: PA66 or PBT, UL94V-0
Electrical
Rated voltage: 250V
Rated current: 16A
Wire range: 22~14AWG 1.5mm²
Contact Resistance: 20 m Ω
Insulation resistance: 500MΩ/DC500V
Withstand voltage: AC2000V / 1 min
Mechanical
Temp. Range: -40 ° C ~ + 105 ° C
Soldering: 250 ° C 5Sec. Max.
Torque: 0.4 N.m (3.5Lb. in)
Strip length: 4.5~5 mm
Technical Documents
Please contact us for more information.
