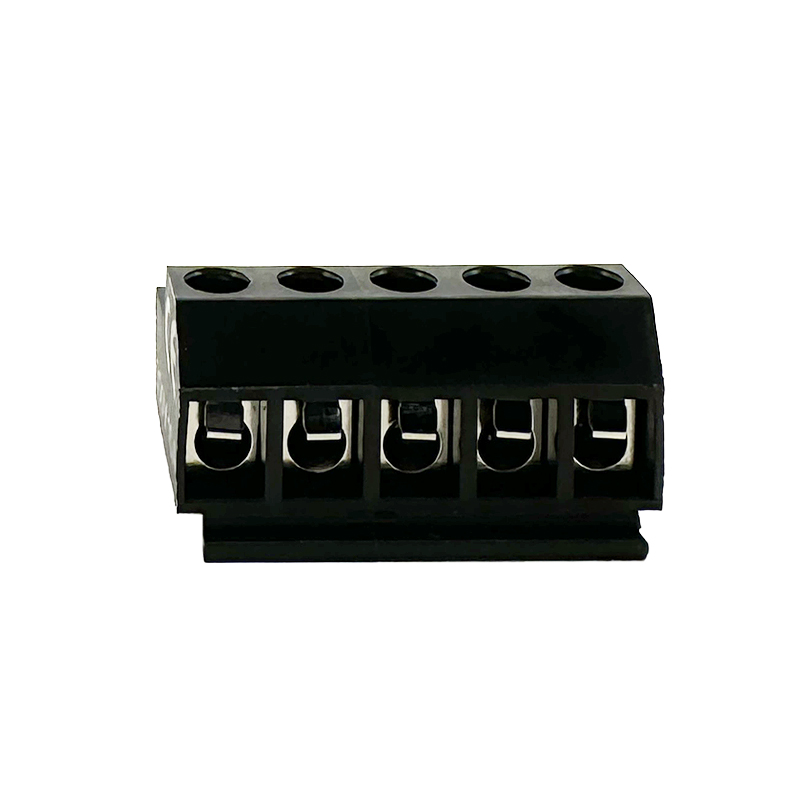

Female Terminal block 5.0mm Pitch:RHTBY31K-5.00

Series P/N: RHTBY31K-5.00

PCB Terminal Block wire protector is available at RHT.

We have been selling on the markets many years and get good feedback.

Please view our large selection of PCB Terminal Block wire protector. Any questions,Please contact our sales team to get any service support.

If you need any samples,quick L/T, and etc, we will try our best to support.

2D(PDF)Drawing

3D(IGS / STP)Drawing

Product parameter:

Features

-Number of Poles: Specifies how many terminals or connections are available on the block. This can vary depending on the specific model and application requirements, typically ranging from 2 poles up to multiple poles (e.g., 2, 3, 4, 6, 8, etc.).

-Current Rating: Indicates the maximum current that the terminal block can safely handle. This rating ensures that the terminal block can manage the electrical load without overheating or causing electrical failures.

-Voltage Rating: Specifies the maximum voltage that the terminal block is rated for, ensuring safe operation within specified electrical parameters.

-Material: Terminal blocks are typically made from materials such as nylon or thermoplastic for insulation and conductive parts made of materials like brass or tin-plated brass. This construction ensures durability, good electrical conductivity, and resistance to environmental factors.

Applications

1.Automotive Electronics

2.Medical Devices

3.Test and Measurement Instruments

4.Custom Electronics Projects

Specifications

Electrical :

Rated voltage: 300V

Rated current: 12A

Contact resistance: 20mΩ

Insulation resistance: 500MΩ/500V

Withstanding Voltage: AC1500V/1Min
