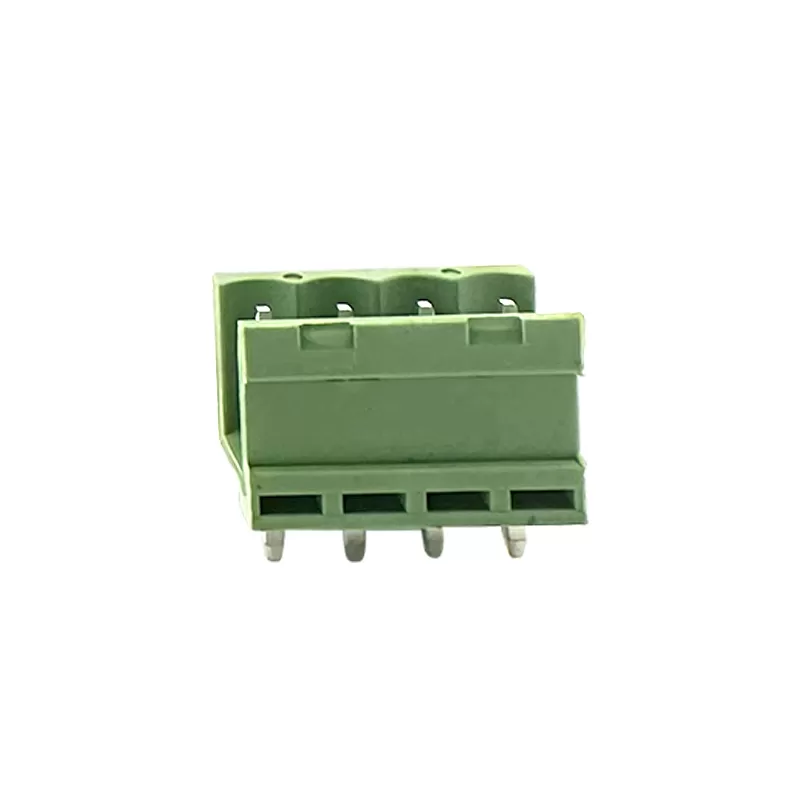

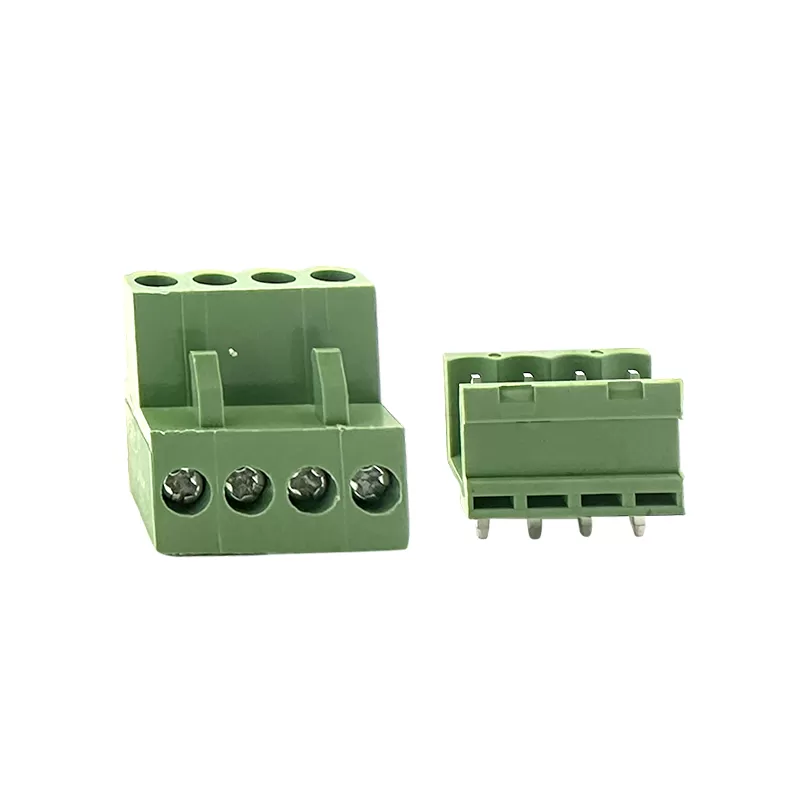

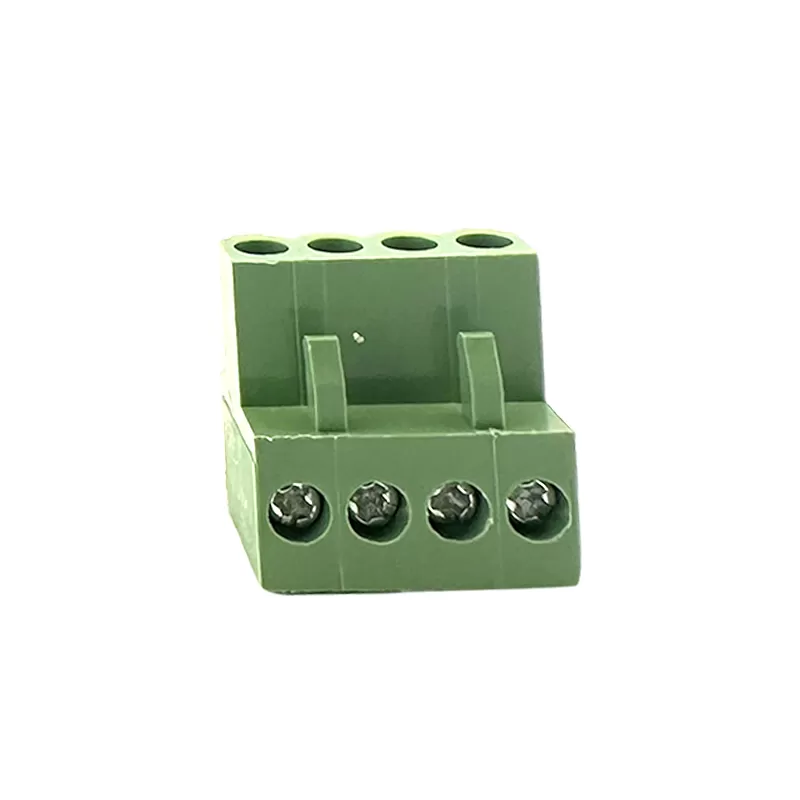

3.96mm Male Pluggable terminal block:RHTBYDK-3.96

Features

-Pitch Size: The 3.96mm pitch refers to the center-to-center spacing between adjacent terminals, accommodating various wire sizes commonly used in electronic PCB designs.

-Connector Type: Designed with male pins or headers that fit into corresponding female sockets or receptacles of a terminal block. This allows for easy and secure connections and disconnections of wires or components.

-Wire Size Compatibility: Supports a range of wire sizes, accommodating various conductor diameters commonly used in electronics and electrical applications.

-Termination Method: Features male pins or headers for PCB (Printed Circuit Board) mounting, facilitating easy and secure installation onto the PCB. This design allows for reliable connections and mechanical stability.

Applications

1.PCB Assembly

2.Consumer Electronics

3.Industrial Control Systems

4.Telecommunications Equipment

Specifications

Electrical

Rated voltage: 300V

Rated current: 18A

Contact resistance: 20mΩ

Insulation resistance: 500MΩ/DC500V

Withstanding Voltage: AC1600V/1Min

Wire range:28-14AWG 2.5mm²

Material

Screws: M3 steel Zinc plated

Contact: Brass,Ni Plated

Pin header: Brass, Tin plated

Housing: PA66, UL94V-0

Mechanical

Temp. Range: -40ºC~+105ºC

MAX Soldering: +250ºC for 5 Sec.

Torque: 0.5Nm (3.54lb.in)

Strip length: 7-8mm
