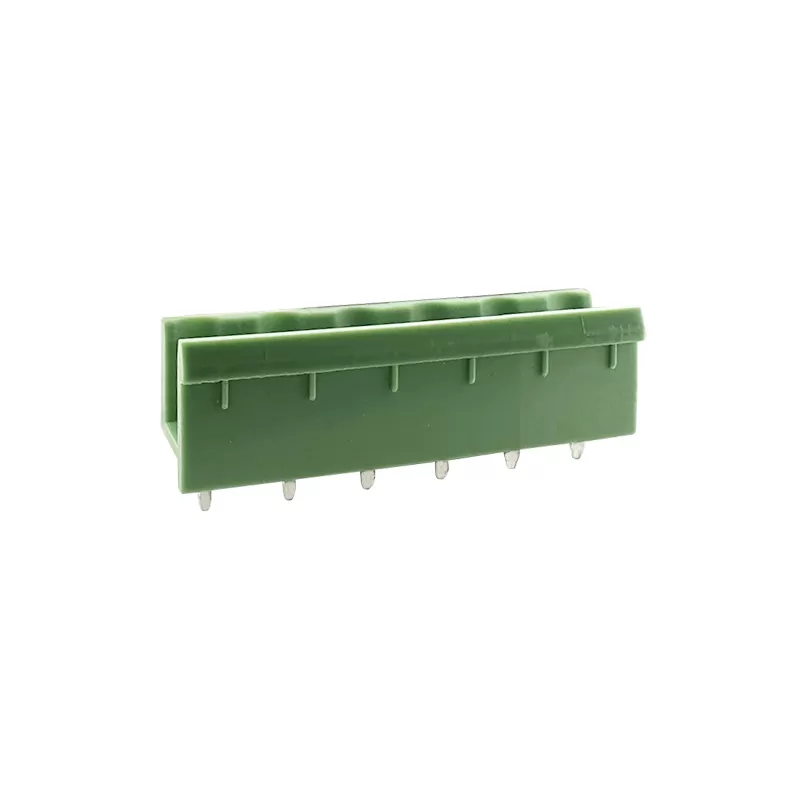

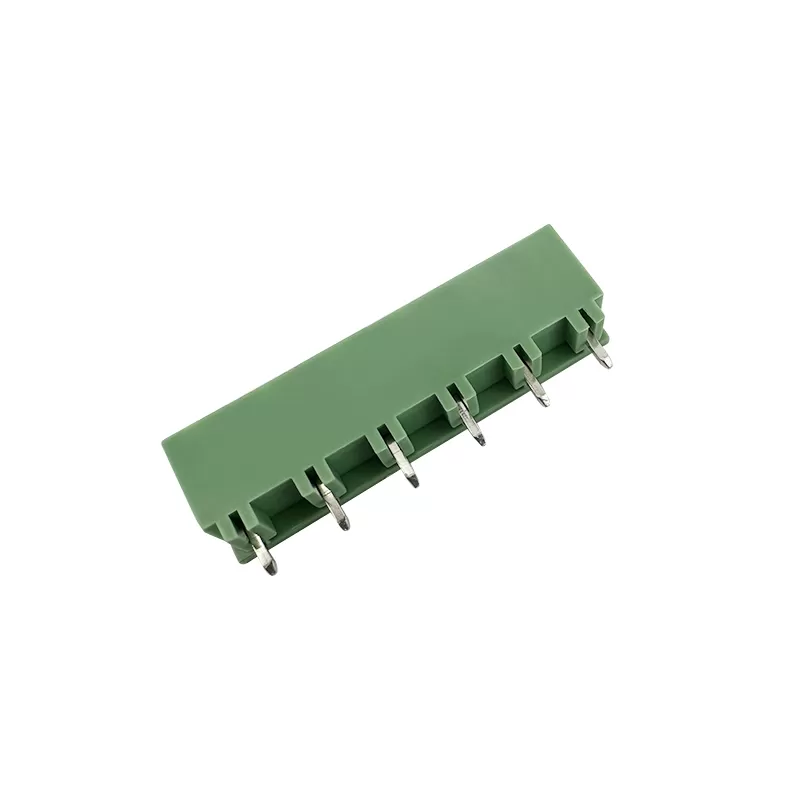

7.50mm & 7.62mm Female Pluggable terminal block Straight Pin :RHTBYDV-7.50&7.62
Pluggable terminal blocks is available at RHT.
We have been selling on the markets many years and get good feedback.
Please view our large selection of Pluggable terminal blocks. Any questions,Please contact our sales team to get any service support.
If you need any samples,quick L/T, and etc, we will try our best to support.
Features
-Number of Pins: Typically available in various configurations such as single-row or double-row with multiple pins.
-Material: Made of durable materials like plastic (for the housing) and metal (for the pins) to ensure electrical conductivity and mechanical strength.
-Current Rating: Specifies the maximum electrical current the terminal block can safely handle.
-Voltage Rating: Specifies the maximum voltage that can be applied across the terminals.
Applications
1. Industrial Control Systems
2. Power Distribution
3. Renewable Energy
4. Automotive Electronics
Specifications
Electrical
Rated voltage: 300V
Rated current: 15A
Contact resistance: 20mΩ
Insulation resistance: 500MΩ/DC500V
Withstanding Voltage: AC1600V/1Min
Material
Contact: Brass,Ni Plated
Pin header: Brass, Tin plated
Housing: PA66, UL94V-0
Mechanical
Temp. Range: -40ºC~+105ºC
MAX Soldering: +250ºC for 5 Sec.
Technical Documents
Please contact us for more information.Features
