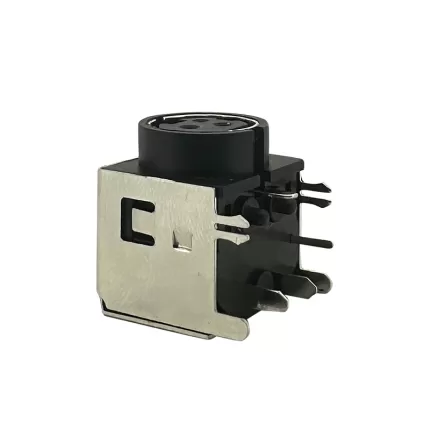

DC Power Jack:RHTAY88L

Series P/N:RHTAY88L

Power Din Jack & Plug is available at RHT.

We have been selling on the markets many years and get good feedback.

Please view our large selection of Power Din Jack & Plug. Any questions,Please contact our sales team to get any service support.

If you need any samples,quick L/T, and etc, we will try our best to support.

2D(PDF)Drawing

3D(IGS / STP)Drawing

Product parameter:

Features

-Termination Options:

Solder Type: Some DC power jacks require soldering onto circuit boards or wires for installation.

Screw Terminal Type: Others feature screw terminals for easy connection to bare wires, providing flexibility in installation and repair scenarios.

-Durability and Construction:

Materials: Made from durable materials such as plastic or metal to withstand mechanical stress and frequent use.

Internal Components: Includes internal components such as springs or clips to secure the mating plug, ensuring a reliable electrical connection.

-Polarity and Protection:

Polarity Markings: Often marked with polarity indicators (e.g., + and - symbols) to ensure correct wiring and prevent damage to connected devices due to reverse polarity.

Protection Features: Some models may include features like strain relief or overcurrent protection to enhance reliability and safety.

-Ease of Use:

Plug-and-Play: Allows for easy connection and disconnection of power supplies without requiring tools, providing convenience in both installation and maintenance.

Applications

1.Consumer Electronics

2.Industrial Applications

3.Telecommunications:

4.Automotive and Marine

Specifications

Material:

Housing Material: PBT+15%G.F

Contact:Brass, Tin plated

Technical parameters:

Contact Resistance: ≤30mΩ

Insulation Resistance:≥100MΩ
