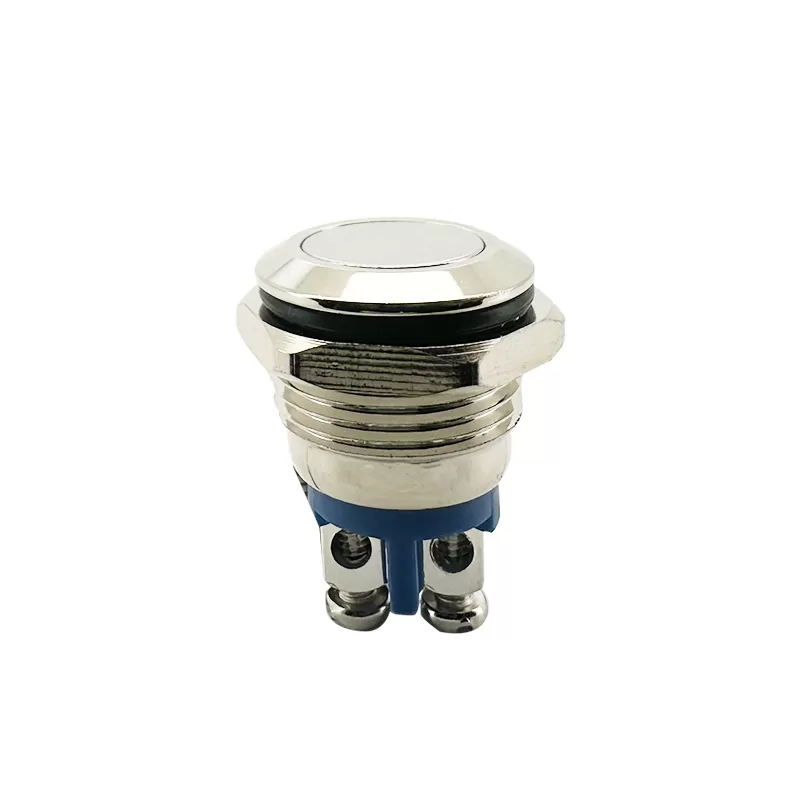

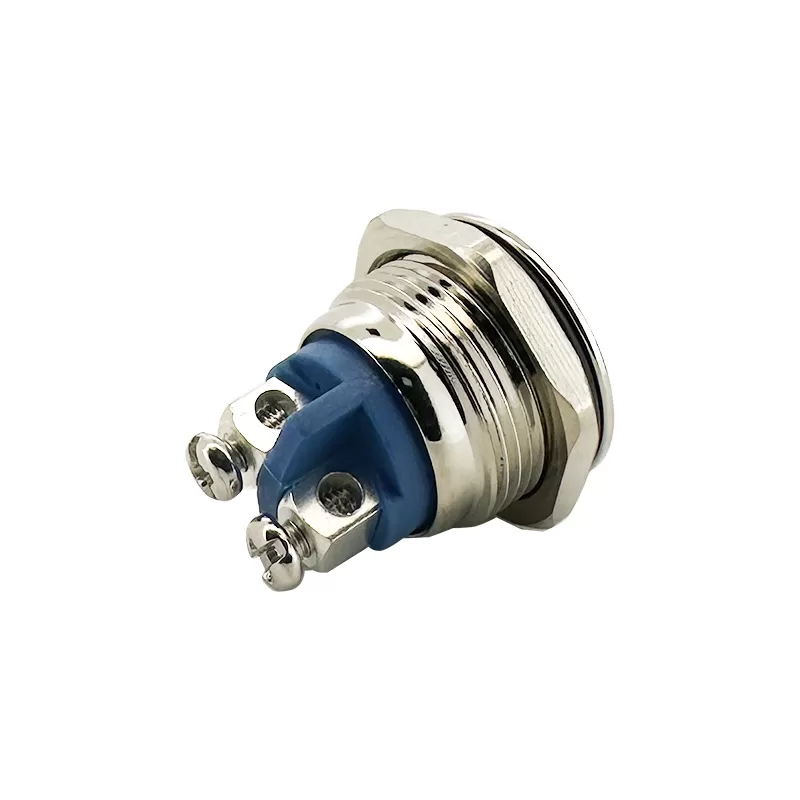

Metal Push Button Switch :RHTGYBS-M16-01
Push button switches is available at RHT.
We have been selling on the markets many years and get good feedback.
Please view our large selection of Push button switches. Any questions,Please contact our sales team to get any service support.
If you need any samples,quick L/T, and etc, we will try our best to support.
Features
-Switching Mechanism:
Utilizes a momentary or maintained contact mechanism, providing tactile feedback and reliable operation with each press.
-Actuator Options:
Typically equipped with a metal actuator button that can be illuminated (LED options available) or non-illuminated based on application needs.
-Electrical Ratings:
Rated for specific voltage and current levels, ensuring compatibility with various electrical circuits and applications.
-Mounting Options:
Designed for panel mount installation, with options for solder lug or screw terminals for easy wiring and installation onto control panels or equipment.
Applications
1.Consumer Electronics
2.Medical Equipment
3.Commercial and Office Equipment
4.Security Systems and Access Control
Specifications
Metal Push Button Switch IP65
Rating: 2A 36V DC
Mounting Hole: Ø16 mm
Insulation Resistance: 1,000MΩ Mim
Contact Resistance: 50MΩ Max.
Dielectric Strength: AC 2,000V 1 Minute
Operating Temperature: -20oC ~ +55oC
Mechanical Life: 1,000,000 cycles
Electrical Life: 20,000 cycles
Technical Documents
Please contact us for more information.Features
