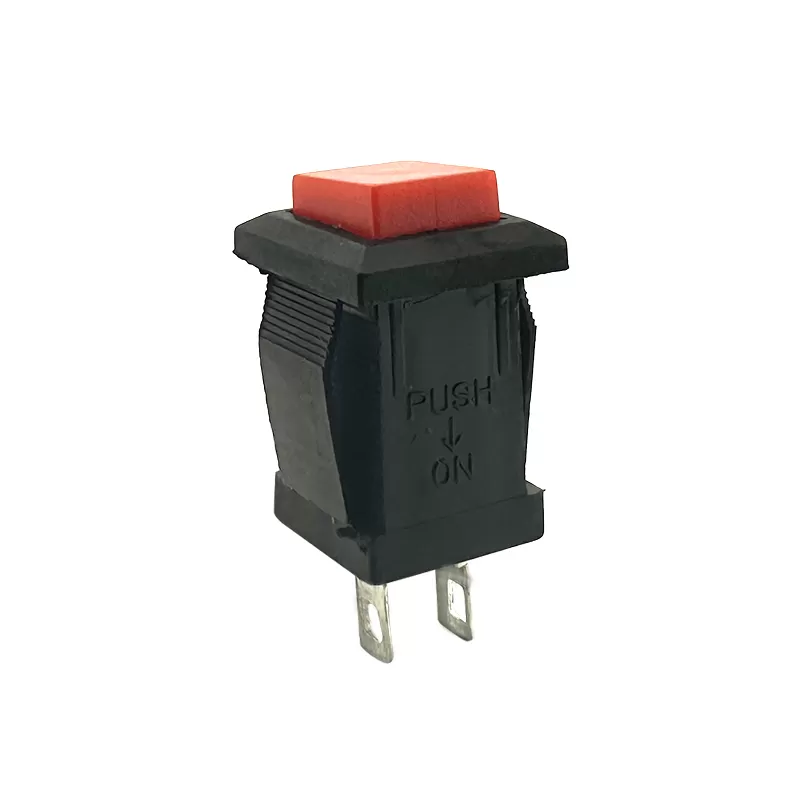

Push Button Switch:RHTGYBS-002
Push button switches is available at RHT.
We have been selling on the markets many years and get good feedback.
Please view our large selection of Push button switches. Any questions,Please contact our sales team to get any service support.
If you need any samples,quick L/T, and etc, we will try our best to support.
Features
-Mounting Options:
Panel Mount: Designed to be mounted on a panel or control surface.
PCB Mount: Designed to be soldered directly onto a printed circuit board (PCB).
-Mechanical Life: Rated for a certain number of operations (typically in the thousands or millions), indicating longevity and reliability.
-Safety and Compliance: Comply with relevant safety standards (such as UL, CE) and may have features like arc suppression or anti-vandalism design.
-Tactile Feedback: They typically provide tactile feedback when pressed, giving users a physical sensation or click to confirm activation.
Applications
1.Consumer Electronics
2.Industrial Control:
3.Automotive
4.Telecommunications
Specifications
Push Button Switch
ELECTRICAL
Rating: 3A 125V AC ,1A 250V AC
Contact resistance: 20mΩ Max
Insulation resistance: 100MΩ/500VDC Min
Withstanding Voltage: AC1000V/1Min
Operating Temperature: -25ºC~+85ºC
Electrical life: 50000 Cycles
Technical Documents
Please contact us for more information.Features
