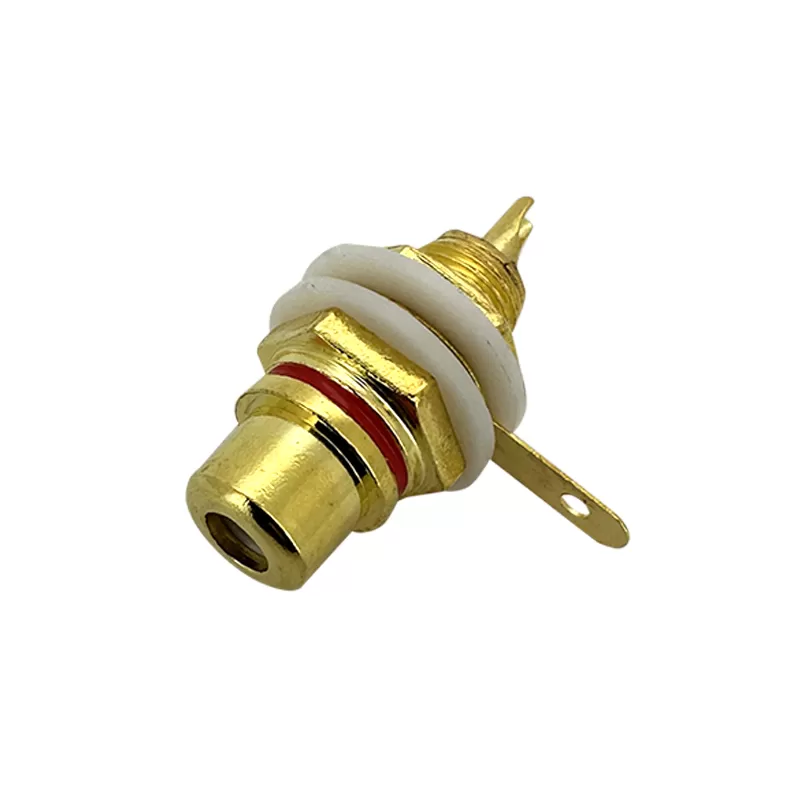

Neutrik RCA Socket ：RHTAYCA-108

Features

-Soldering or PCB Mount: Depending on the model, Neutrik RCA sockets may be available for soldering directly onto cables or for mounting on printed circuit boards (PCBs).

-Color Coding: Neutrik sometimes uses color coding for easy identification of connector types, though this varies by model and series.

-Grounding: They often include features to ensure proper grounding, reducing the risk of noise and interference in audio signals.

-Compatibility: Neutrik RCA sockets are designed to be compatible with standard RCA plugs commonly used in audio and video equipment.

Applications

1.Recording Studios

2.Public Address Systems

3.Consumer Electronics

4.Instrumentation and Testing

Specifications

Contact resistance : 30mΩ Max

Insulation resistance : 50MΩ Min at DC 500V

Withstand voltage : AC 500V(50Hz) 1min

Operating Temperature : -25ºC~+85ºC

Materials:

Contacts : Brass

Housing : Brass

Insulation Washer : PBT UL94V~0

Insert Ring : ABS UL94V~0

Technical Documents

Please contact us for more information.Features
