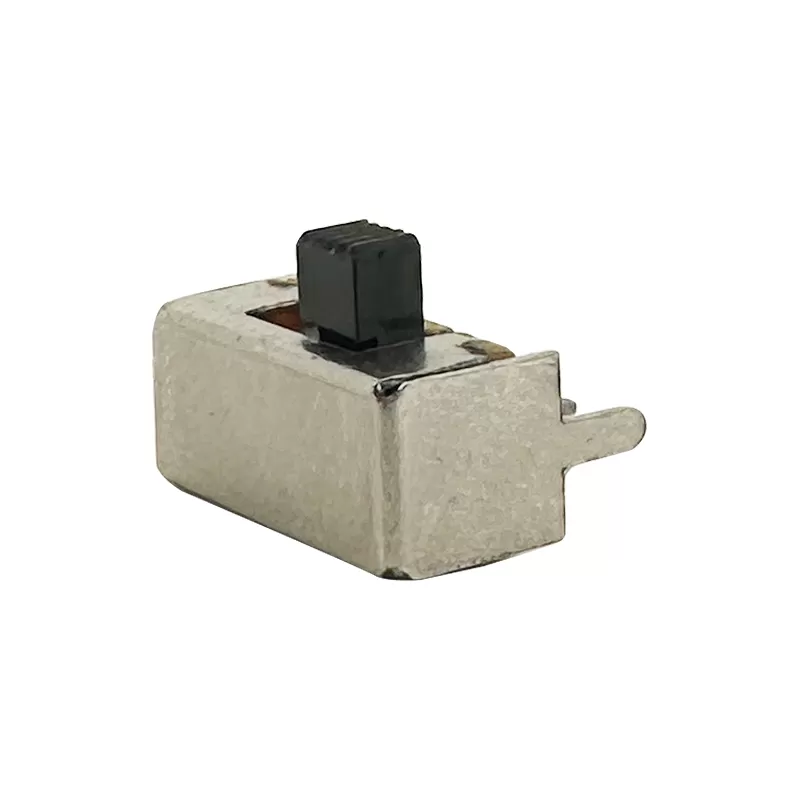

Slide Switch (1P2T):RHTGYK02-12E12
Slide switches is available at RHT.
We have been selling on the markets many years and get good feedback.
Please view our large selection of Slide switches. Any questions,Please contact our sales team to get any service support.
If you need any samples,quick L/T, and etc, we will try our best to support.
Features
-Electrical Ratings: Available in various ratings for voltage and current, accommodating different electrical requirements depending on the application.
-Compact Size: Typically compact in size, making it suitable for integration into small electronic devices, control panels, and PCBs.
-Versatility: Offers flexibility in circuit design by allowing selection between two different paths or states with a single switch.
-Panel Mounting: Designed for panel mounting or PCB mounting, facilitating easy installation and integration into electronic assemblies.
Applications
1.Testing and Measurement Equipment
2.Industrial Control Systems
3.Security Systems
4.Audio Equipment
Specifications
Slide Switch ON-ON (1P2T)
Rating: 0.5A 50VDC
Contact Resistance: 30mΩ Max
Insulation Resistance:500VDC 100MΩ Min
Dielectric Strength: 500V AC 1 Minute
Operating Force: 100gf~ 800gf
Electrical Life :10,000 cycles
Technical Documents
Please contact us for more information.Features
