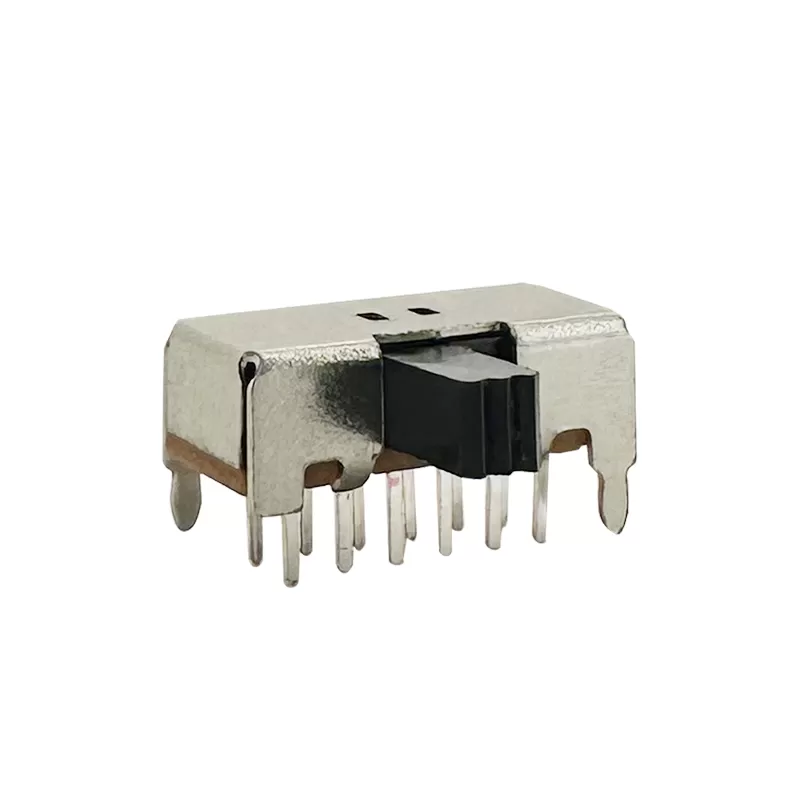

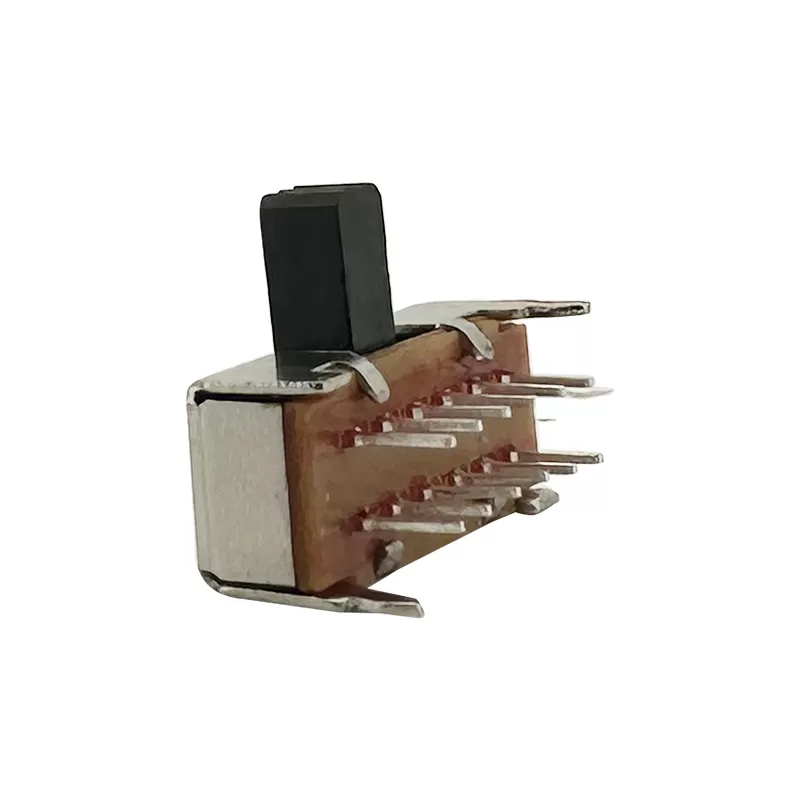

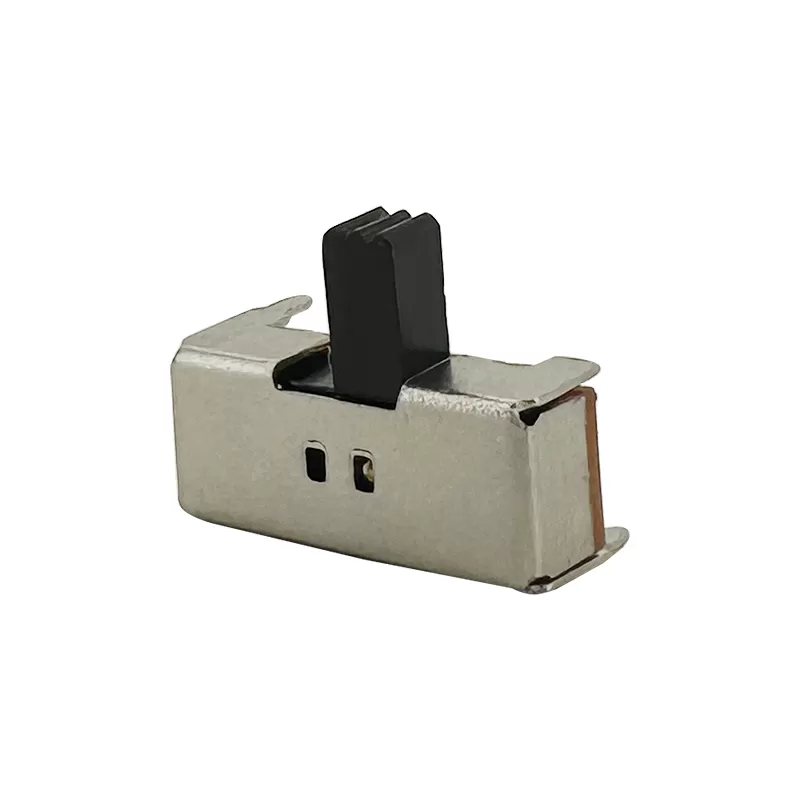

Slide Switch (4P2T):lRHTGYK37-42D01

Features

-Poles and Throws:

Poles: Refers to the number of separate circuits that the switch can control simultaneously. A 4P switch can control four independent circuits.

Throws: Indicates the number of positions the switch can connect the poles to. A 2T switch has two positions or states (commonly referred to as ON/OFF or A/B positions).

-Mechanism:

Slide Action: Operated by sliding a lever or actuator from one position to another.

Stability: Typically, slide switches provide stable positions once switched due to their mechanical design.

-Electrical Functionality:

Double Pole: The switch has two separate circuits that are simultaneously controlled by the switch's sliding action.

Two Throw: The switch can connect each pole to one of two terminals, effectively allowing switching between two different circuits or states.

-Durability and Design:

Materials: Constructed from durable materials such as metal or high-quality plastics to withstand frequent use and provide reliable switching.

Compact: Designed to be compact and fit into various electronic devices and panels.

Applications

1.Audio Equipment

2.Electronic Instruments

3.Test Equipment

4.Battery-Powered Devices

Specifications

Slide Switch ON-ON(4P2T)

Rating: 0.3A 50VDC

Contact Resistance: 30mΩMax

Insulation Resistance:500VDC 100MΩ Min

Dielectric Strength: 500V AC 1 Minute

Operating Force: 100gf~ 800gf

Electrical Life :10,000 cycles

Technical Documents

Please contact us for more information.Features
