Features
-Connector Type:SMB (SubMiniature version B) connector, known for its snap-on coupling mechanism.
-Gender:Male jack, which has a center pin to mate with a female SMB connector.
-Impedance:Standard impedance of 50 ohms, optimized for RF applications to minimize signal loss and reflection.
-Frequency Range:Supports frequencies up to 4 GHz, making it suitable for a wide range of RF applications.
Applications
1.Test and Measurement Equipment
2.Telecommunications
3.Broadcasting
4.Wireless Communication Systems
Specifications

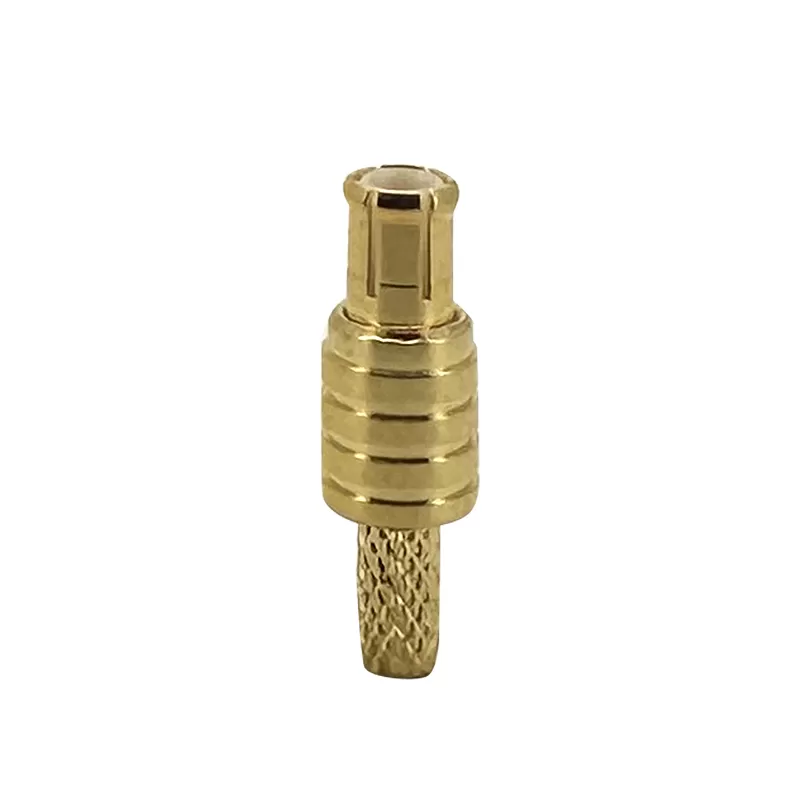

SMB Cable Connector With Jack Male Straight Type (Cable Group: RG-316/U,RG-174/U)
Electrical Specifications:
Impedance: 50 Ω
Frequency Range: 0-4 GHz with low reflection; usable to 10.0 GHz
Voltage Rating for RG-188/U Cable: 335 volts at sea level and 85 volts at 70,000 feet
Dielectric Withstanding Voltage:
RG-196: 750 VRMS;
RG-188: 1,000 VRMS
VSWR:
Straight connector, RG-196/U: 1.30±0 .04 f (GHz)
Right angle connector, RG-196/U: 1.45±0 .06 f (GHz)
Straight connector, RG-188/U: 1.25±0 .04 f (GHz)
Right angle connector, RG-188/U: 1.35±0 .04 f (GHz)
Contact Resistance:
Center contact: 6.0 mΩ initial, 8.0 after environmental;
Outer contact: 1.0 mΩ initial, 1.5 after environmental
Braid to body: 1.0 mΩ initial, after environmental N/A
Insulation Resistance: 1,000 MΩ Min.
Insertion Loss:
Straight connector: 0.30 dB @ 1.5 GHz
Right angle connector: 0.60 dB @ 1.5 GHz
RF Leakage: -55 dB Min. @ 2-3 GHz
Mechanical Specifications:
Mating:Snap-on coupling per MIL-STD-348
Braid/Jacket Cable Affixment:Hex crimp
Center Conductor Cable Affixment:Solder
Engagement Forces:
Engagement: 14 lbs maximum
Disengagement: 2 lbs minimum
Durability: 500 cycles Min.
Temperature Range:- 65°C to +165°C
Material
Center Contact:
Female: beryllium copper, gold-plated
Male: brass or beryllium copper, gold-plated
Outer Contact Plating: Nickel or gold plating
Body:Brass or zinc
Body Plating: Nickel or gold plating
Insulator: TFE
Crimp Ferrule:Annealed copper alloy
