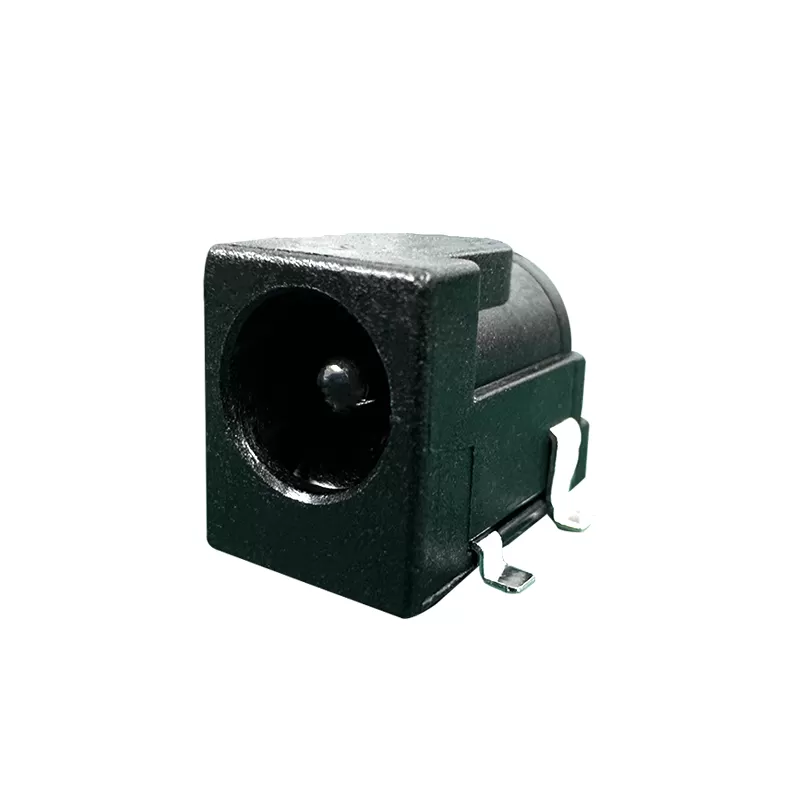

DC POWER Jack SMT HORIZONTAL：RHTAYDC-001

Series P/N:RHTAYDC-001

SMT DC power connectors is available at RHT.

We have been selling on the markets many years and get good feedback.

Please view our large selection of SMT DC power connectors. Any questions,Please contact our sales team to get any service support.

If you need any samples,quick L/T, and etc, we will try our best to support.

2D(PDF)Drawing

3D(IGS / STP)Drawing

Product parameter:

Features

-Connector Type: They typically feature a barrel-type connector, either cylindrical or rectangular in shape, that accepts a corresponding plug from the power adapter. The connector's design ensures a secure electrical connection.

-Polarity Markings: Like other DC power connectors, SMT horizontal jacks are marked with polarity indicators (often center-positive or center-negative) to ensure correct alignment with the power supply and prevent damage to the connected device.

-Voltage and Current Ratings: These connectors come in various sizes and ratings to accommodate different voltage and current requirements, ensuring compatibility with the power supply and the device being powered.

-Durability and Reliability: High-quality SMT horizontal DC power jacks are made from durable materials such as metal or high-temperature plastics to withstand repeated insertions and removals, as well as environmental factors.

Applications

1.Laptops and Tablets

2.Networking Equipmen

3.Industrial Electronics

4.Medical Devices

Specifications

Rated Load: DC 30V 0.5A

Contact resistance: 30mΩ, max

Insulation resistance: 100MΩ, min

Withstand Voltage: AC500V

Actuating Force: 3~20N

Life: 5000 cycles
