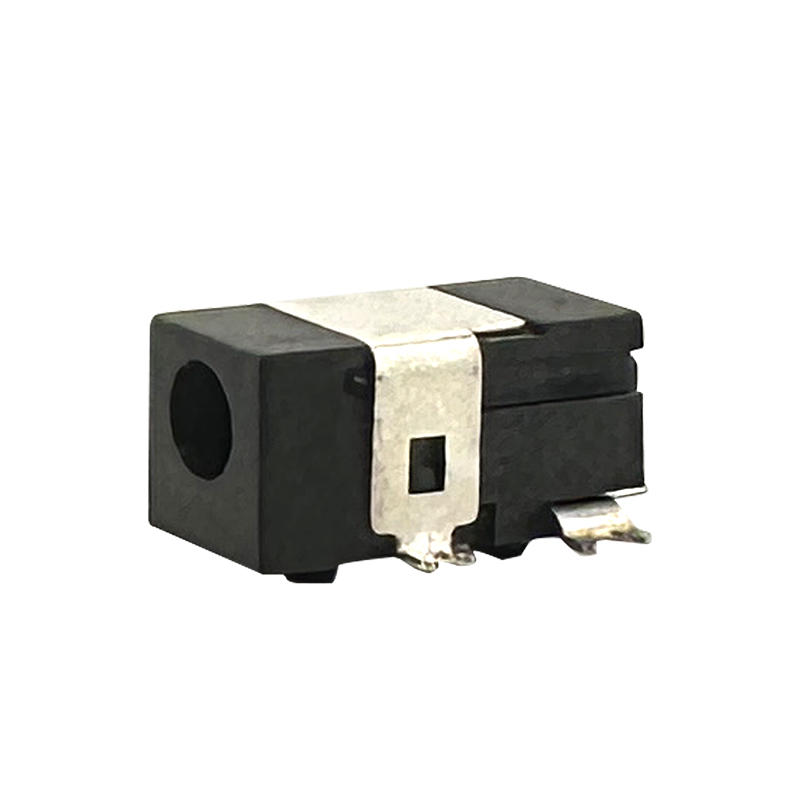

DC POWER Jack SMT HORIZONTAL：RHTAYDC-003

Series P/N:RHTAYDC-003

SMT DC power connectors is available at RHT.

We have been selling on the markets many years and get good feedback.

Please view our large selection of SMT DC power connectors. Any questions,Please contact our sales team to get any service support.

If you need any samples,quick L/T, and etc, we will try our best to support.

2D(PDF)Drawing

3D(IGS / STP)Drawing

Product parameter:

Features

-Form Factor: SMT horizontal DC power jacks are designed to lay flat on the PCB, with the connector's body oriented horizontally. This orientation allows for easier integration into compact electronic designs.

-Mounting Style: These jacks are specifically designed for surface mounting, meaning they are soldered directly onto the surface of the PCB without the need for through-holes. This mounting method helps save space and facilitates automated assembly processes.

-Durability and Reliability: High-quality SMT horizontal DC power jacks are made from durable materials such as metal or high-temperature plastics to withstand repeated insertions and removals, as well as environmental factors.

-Ease of Assembly: Designed for automated assembly processes, SMT horizontal DC power jacks streamline production and reduce manufacturing costs compared to through-hole mounting methods.

Applications

1.Consumer Electronics

2.Telecommunications Devices

3.Industrial Electronics

4.Medical Devices

Specifications

Rated Load: DC 30V 0.5A

Contact resistance: 30mΩ, max

Insulation resistance: 100MΩ, min

Withstand Voltage: AC500V

Actuating Force: 3~20N

Life: 5000 cycles
