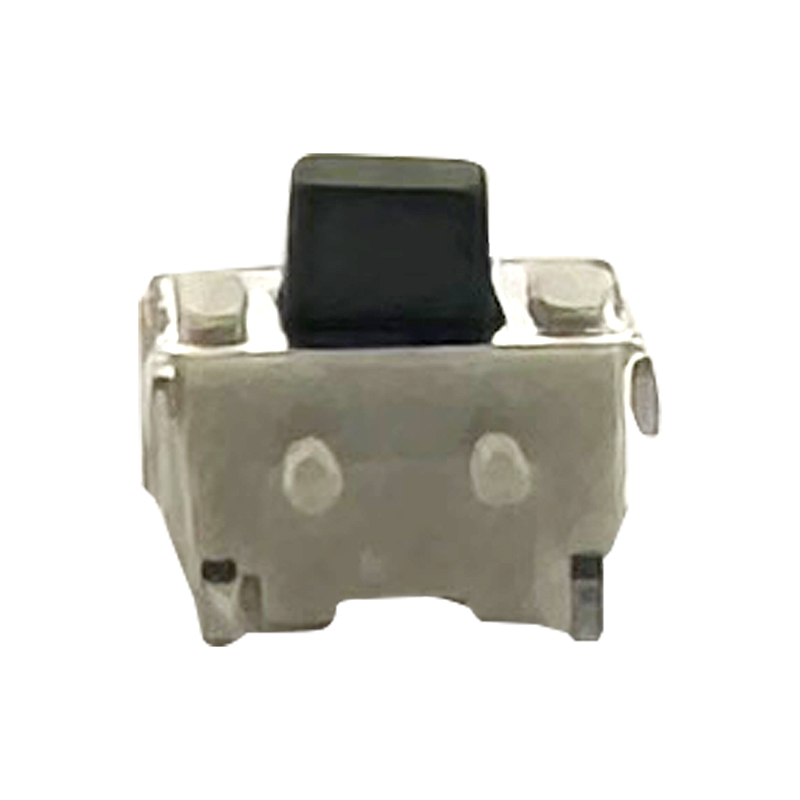

2x4mm With column,Heightening,Tactile Switches :RHTGYS2403

Features

-Dimensions:Compact size with a standard footprint of 2x4mm, suitable for applications where space is limited.

-Actuation Type:

Tactile Feedback: Provides tactile feedback upon actuation, offering a click or bump sensation to confirm the switch activation.

Momentary Action: Returns to its original position when released, making it suitable for applications requiring temporary contact.

-Contact Configuration:

Available in various configurations such as single-pole single-throw (SPST) or single-pole double-throw (SPDT), depending on the application requirements.

Configurations determine the switch's ability to control circuits or signals.

-Termination Options:

Designed for surface-mount technology (SMT), allowing for direct placement on PCBs during assembly.

SMT terminals ensure secure electrical connections and compatibility with automated manufacturing processes.

Applications

1.Automotive Electronics

2.Medical Devices

3.Industrial Applications

4.Consumer Appliances

Specifications

Electrical:

1.Rating:50mA 12V DC

2.Contact Resistance:100mΩ Max.

3.Insulation Resistance:100MΩ Min,100V DC

4.Dielectric voltage proof:250V AC for 1min

5.Electrically Life:100000 cycles Min.

6.Operating Force:160±50gf

7.Environment temperature:-30ºC~+80ºC

Materials:

1.Cards: Phosphor, Silver plated

2.Pedestal:LCP,White

3.Shrapnel:Stainless steel

4.Push button:LCP,Black

5.Cover:H62, Silver plated

Technical Documents
