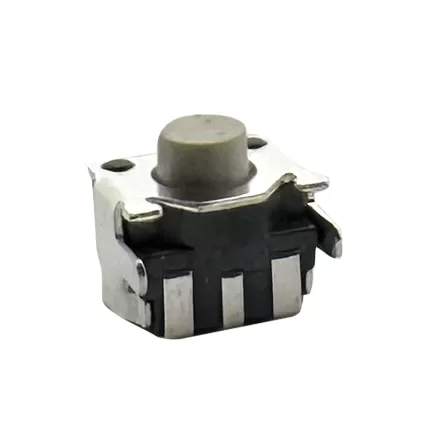

3.3x4.5mm Tact Switch :RHTGYS3345

Features

-Dimensions:Compact size with dimensions of 3.3mm x 4.5mm, suitable for applications where space is limited but requires slightly larger tactile switches compared to smaller variants.

-Actuation Type:

Provides tactile feedback upon actuation, typically with a distinct click or bump sensation.

Momentary action: Returns to its original position when released, suitable for applications requiring temporary contact.

-Contact Configuration:

Available in various configurations such as single-pole single-throw (SPST) or single-pole double-throw (SPDT), depending on the application requirements.

Configurations determine the switch's ability to control circuits or signals.

-Termination Options:

Designed for surface-mount technology (SMT), allowing for direct placement on PCBs during assembly.

SMT terminals ensure secure electrical connections and compatibility with automated manufacturing processes

Applications

1.Consumer Electronics

2.Computer Peripherals

3.Automotive Electronics

4.Medical Devices

Specifications

Electrical:

1.Rating:50mA 12V DC

2.Contact Resistance:100mΩ Max.

3.Insulation Resistance:100MΩ Min,100V DC

4.Dielectric voltage proof:250V AC for 1min

5.Electrically Life:100000 cycles Min.

6.Operating Force:250±50gf

7.Environment temperature:-30ºC~+80ºC

Materials:

1.Cards: Phosphor 0.12, Silver plated

2.Pedestal:LCP, Black

3.Shrapnel:Stainless steel

4.Push button:LCP,White

5.Cover:Phosphor 0.12

Technical Documents
