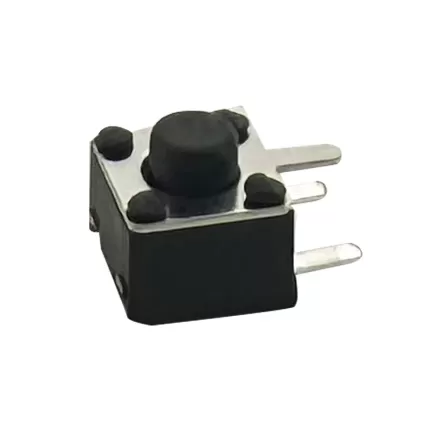

Tactile Switch:RHTGYS4503

Series P/N:RHTGYS4503

Tactile switches is available at RHT.

We have been selling on the markets many years and get good feedback.

Please view our large selection of Tactile switches. Any questions,Please contact our sales team to get any service support.

If you need any samples,quick L/T, and etc, we will try our best to support.

2D(PDF)Drawing

3D(IGS / STP)Drawing

Product parameter:

Features

-Physical Feedback: They offer a noticeable tactile bump or resistance when the switch is actuated, giving users a clear indication that the switch has been engaged. This feedback is typically in the form of a "click" or a noticeable change in force.

-Actuation Force: Tactile switches usually require a specific amount of force to actuate, which is often higher than that of membrane switches but lower than that of some other switch types like mechanical switches. The required actuation force can vary based on the design and intended use of the switch.

-Electrical Characteristics: Tactile switches can be designed to handle different electrical ratings, including voltage and current limits. This makes them versatile for a wide range of applications from low-power electronic devices to more robust systems.

-Switch Configuration: They are available in various configurations, such as single-pole single-throw (SPST) or multi-pole multi-throw (MPMT), allowing them to be used in different circuit designs.

Applications

1.Industrial Controls

2.Automotive Applications

3.Medical Devices

4.Telecommunications

Specifications

Tactile Switch

ELECTRICAL

1.Rating: 20mA 12V

2.Contact Resistance : 50mΩ Max

3.Insulation Resistance: 100MΩ Min

4.Dielectric Strength : AC250V(50/60Hz for 1minute)
