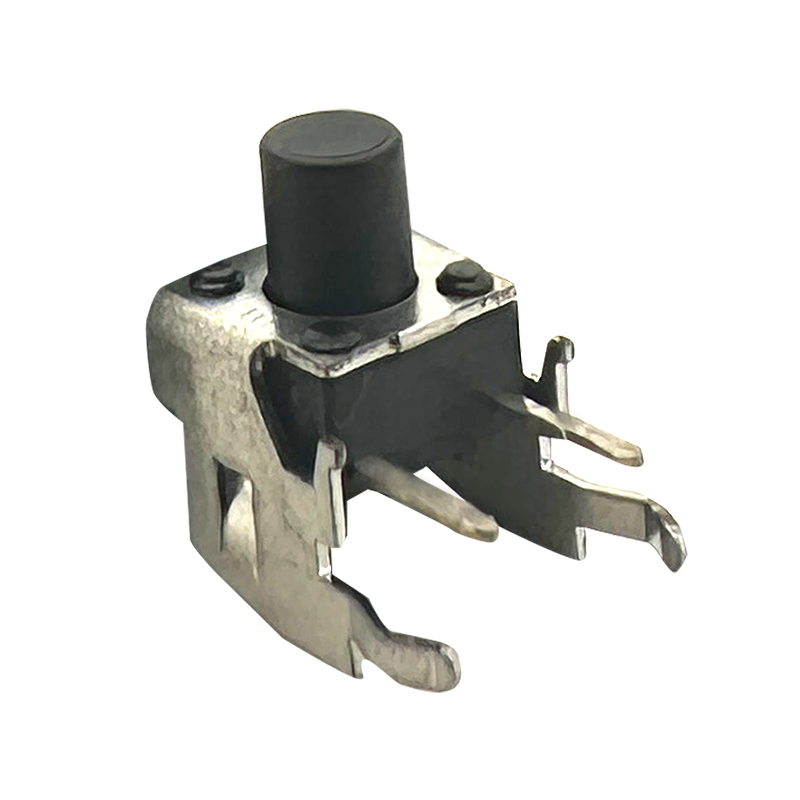

Tactile Switch:RHTGYS6606

Series P/N:RHTGYS6606

Tactile switches is available at RHT.

We have been selling on the markets many years and get good feedback.

Please view our large selection of Tactile switches. Any questions,Please contact our sales team to get any service support.

If you need any samples,quick L/T, and etc, we will try our best to support.

2D(PDF)Drawing

3D(IGS / STP)Drawing

Product parameter:

Features

-Feedback Type: The tactile feedback is typically produced by a small mechanism inside the switch, such as a leaf spring or a rubber dome, that provides a bump sensation when the switch is pressed.

-Electrical Characteristics: Tactile switches can be designed to handle different electrical ratings, including voltage and current limits. This makes them versatile for a wide range of applications from low-power electronic devices to more robust systems.

-Switch Configuration: They are available in various configurations, such as single-pole single-throw (SPST) or multi-pole multi-throw (MPMT), allowing them to be used in different circuit designs.

-Mounting Type: Tactile switches can be either through-hole mounted (where leads go through holes in the PCB) or surface-mount (where the switch is soldered directly onto the surface of the PCB).

Applications

1. Consumer Goods

2. Aerospace and Defense

3. Gaming

4. Home Security Systems

Specifications

Tactile Switch (Right Angle)

ELECTRICAL

1.Rating: 50mA 12VDC

2.Contact Resistance : 50mΩ max(initial)

3.Insulation Resistance: 100MΩ(minDC 250V)

4.Dielectric Strength : AC250V(50/60Hz for 1minute)
