Wire to Wire and Wire to Board Connectors Types

Wire to Board Connectors & Wire to Wire Connectors Overview

Wire to Board (WTB) Connectors and Wire to Wire (WTW) Connectors are crucial in establishing electrical connections in various devices and equipment. WTB connectors link a wire to a printed circuit board (PCB), whereas WTW connectors join two wires together, ensuring a secure electrical connection between them.

Connector Type	Description	Features	Applications
Wire to Board Connectors	Connect wires directly to a PCB.	Compact, high-reliability, secure locking mechanisms	Consumer electronics, automotive, IoT devices
Wire to Wire Connectors	Join two wires together for secure connections.	High conductivity, strong mating force, weatherproof options	Industrial machinery, automotive wiring harnesses

These connectors are widely used in industries such as automotive, consumer electronics, industrial machinery, and telecommunications due to their versatility, reliability, and ability to handle different power and signal levels.

Wire to Board Connectors

Wire to board connectors are used to attach wires to a circuit board, creating a secure and durable connection. They come in various types, each suitable for different applications and requirements.

Type	Description	Features	Applications

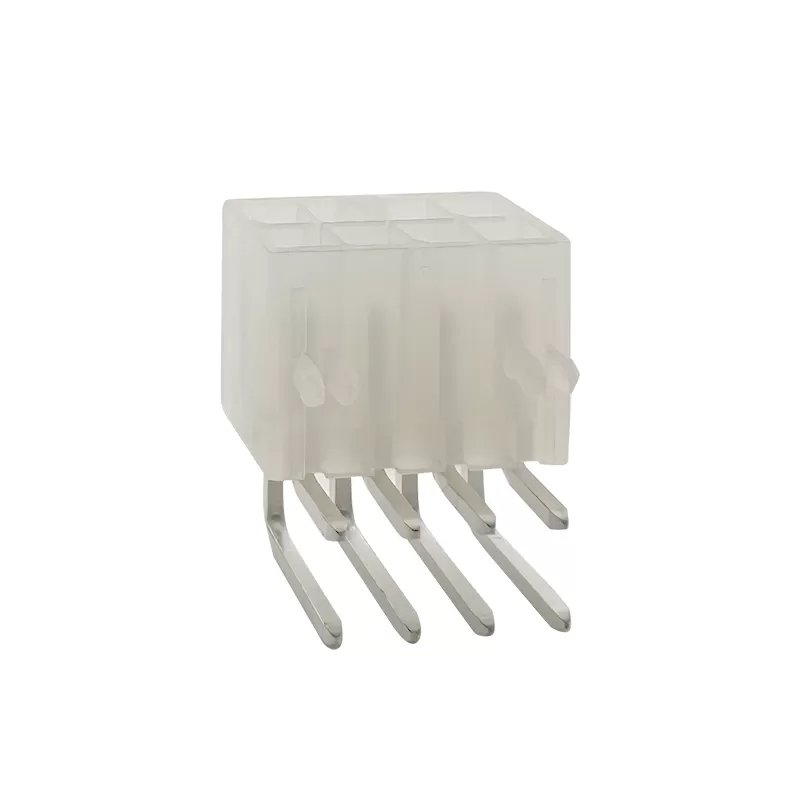

Pin Header Connectors	Male connectors soldered onto the PCB for female connectors to mate with.	Available in single-row, dual-row, right-angle, and surface mount configurations	Circuit boards in electronic devices
IDC (Insulation Displacement Connector)	Connects wires to PCB without stripping insulation.	Quick, efficient connections, high-density options	Telecom, data centers, high-speed signal transmission
Crimp-to-Wire Connectors	Crimped onto the wire and inserted into housings mounted on the PCB.	Secure, reliable connection, multiple pin configurations	Automotive, industrial control systems
FPC (Flexible Printed Circuit) Connectors	Designed for flat, flexible cables to connect to a PCB.	Low-profile, space-saving, flexible cable support	Smartphones, cameras, compact devices

Wire to Wire Connectors:

Wire to wire connectors, on the other hand, are used to join two wires or cables together. These connectors are available in a wide variety of styles to accommodate different wire sizes, numbers of wires, and environmental conditions.

Type	Description	Features	Applications
Crimp Connectors	Metal terminals crimped onto wires and inserted into housings for mating.	Durable, high current capacity, corrosion-resistant	Automotive wiring, home appliances
Butt Connectors	Connect two wires end-to-end, typically with heat-shrink or crimping.	Simple design, easy installation, weatherproof options	Electrical wiring, automotive, aerospace
Terminal Blocks	Mechanical fasteners that secure two wires together.	Easy maintenance, modular, durable	Industrial machinery, building wiring
Push-In Connectors	Spring-loaded mechanisms that allow for quick connections without tools.	Quick installation, secure connections	Home electrical systems, small appliances

Wire to Board & Wire to Wire Connectors Manufacturers | RHT

RHT is one of the manufacturers specializing in both wire to board and wire to wire connectors. We likely offer a broad range of connectors to suit various applications, from simple consumer electronics to complex industrial and telecommunications systems. Our products would be designed to meet specific industry standards, ensuring reliability and performance across different environments and conditions. At RHT, we specialize in supplying a wide range of wire to board and wire to wire connectors, designed for multiple industries, including:

● Consumer electronics

● Automotive

● Telecommunication

● Industrial machinery

Our offerings include high-quality solutions that ensure reliable electrical performance, durability, and customization for various applications.

Why Choose RHT?

● Wide Selection: We provide a comprehensive range of WTB and WTW connectors, including pin headers, IDC connectors, crimp connectors, and more.

● Customization: We can tailor connectors to meet specific needs, offering various pin configurations, materials, and designs.

● Reliability: Our connectors are designed for secure, long-lasting performance, with features like locking mechanisms, corrosion-resistant materials, and weatherproof options.

● Global Supply: As one of China's leading connector manufacturers, we ensure quick delivery and responsive customer support to clients around the globe.

Whether you require connectors for compact consumer devices or industrial machinery, RHT delivers the right solution for your wire-to-board and wire-to-wire connectivity needs. Contact us immediately.
