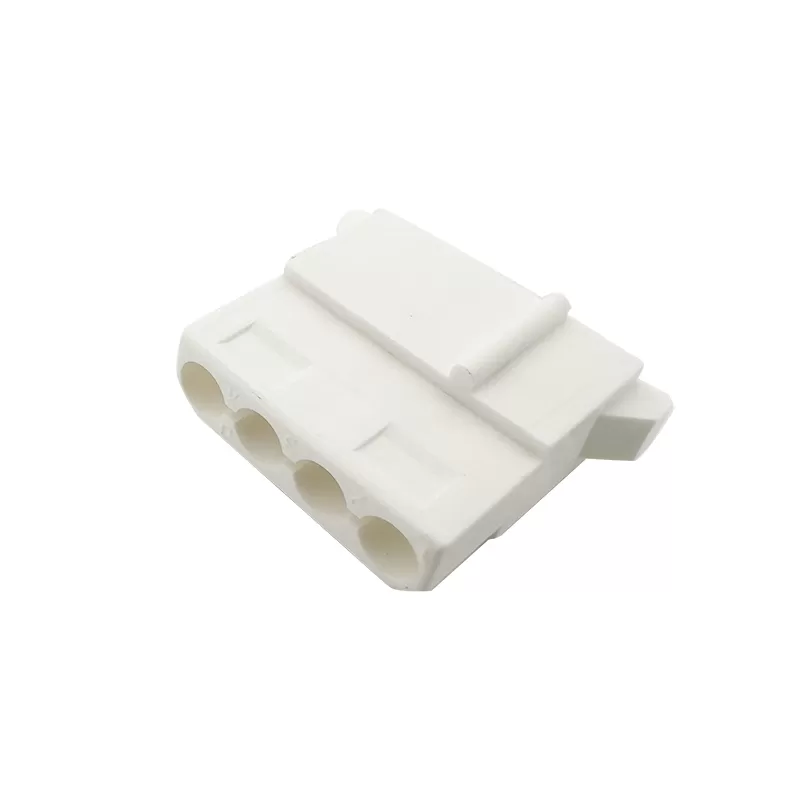

5.08mm Molex 8981 Type Wire To Board Connector :RHTAYL1-5.08

Series P/N: RHTAYL1-5.08

Wire to board connectors & Wire to wire connectors is available at RHT.

We have been selling on the markets many years and get good feedback.

Please view our large selection of Wire to board connectors & Wire to wire connectors. Any questions,Please contact our sales team to get any service support.

If you need any samples,quick L/T, and etc, we will try our best to support.

2D(PDF)Drawing

3D(IGS / STP)Drawing

Product parameter:

Features

-Pitch: The Molex 8981 series has a pitch of 5.08mm, which refers to the distance between each pin or contact point on the connector. This spacing is standard for many industrial and commercial applications.

-Current Rating: These connectors are designed to handle a specific current carrying capacity, typically ranging from a few amps to higher currents, depending on the specific configuration and wire gauge used.

-Wire Gauge Compatibility: They are compatible with a range of wire gauges, allowing for flexibility in design and application. This includes wires typically ranging from 14 AWG to 28 AWG.

-Termination Types: The Molex 8981 connectors support various termination types, including crimped contacts and insulation displacement connectors (IDC). This versatility accommodates different assembly and installation requirements.

Applications

1.Consumer Electronics

2.Telecommunications

3.Medical Devices

4.LED Lighting

Specifications

Rated Voltage: 250V AC.DC

Rated Current: 5A

Contact Resistance: 0.01Ω max

Insulation Resistance: 1000MΩ min

Withstand voltage: 500V AC/MIN

Temperature range for usage : -40ºC~+105ºC
