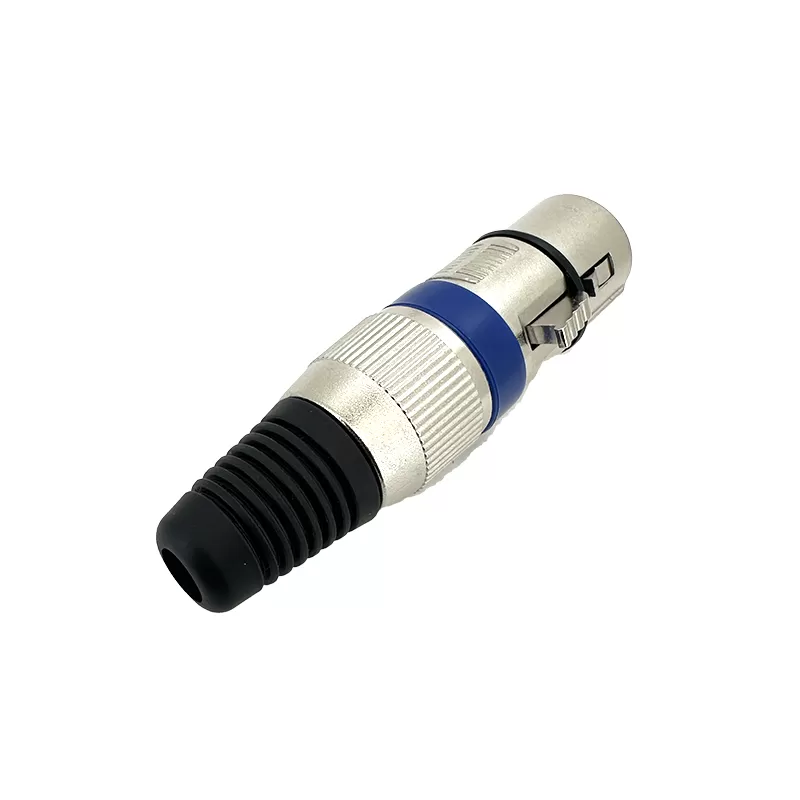

XLR Plug Connector:RHTAYLR-P12

Features

-Three-Pin Configuration: XLR plug connectors typically have three pins arranged in a circular pattern within a metal housing. Each pin serves a specific function: ground (pin 1), positive signal (pin 2), and negative signal (pin 3). This configuration allows balanced audio signals to be transmitted, minimizing noise and interference.

-Robust Construction: XLR connectors are built to withstand frequent use and harsh environments. They are typically made from metal (often zinc or nickel-plated brass) for durability and mechanical strength. This construction ensures that the connectors can endure physical stress and maintain reliable electrical contact.

-Shielded Design: XLR connectors are designed with a shielded housing and connections, which helps to protect the audio signal from electromagnetic interference (EMI) and radio frequency interference (RFI). This shielding ensures clean and noise-free audio transmission.

-Gender Options: XLR connectors come in male and female versions. The male XLR plug has pins that mate with the female XLR socket, providing a secure connection. Female XLR sockets are typically found on equipment panels, while male XLR plugs are on cables.

Applications

1.Intercom Systems

2.Home Audio

3.Industrial and Commercial Applications

4.Microphones

Specifications

Number of contacts: 3

Contact Resistance: ≤ 3 mOhms

Insulation Resistance Initial: > 2 GOhms

After Damp Heat Test: > 1 GOhms

Dielectric Strength: 1500 V dc

Rated current : 16 A

Mechanical Lifetime: >1000 cycles

Insertion / Withdrawal Force: ≤ 20 N

Cable O.D. Range: 4.0 mm - 8.0 mm

Temperature Range: -30° C to + 80° C

Technical Documents
