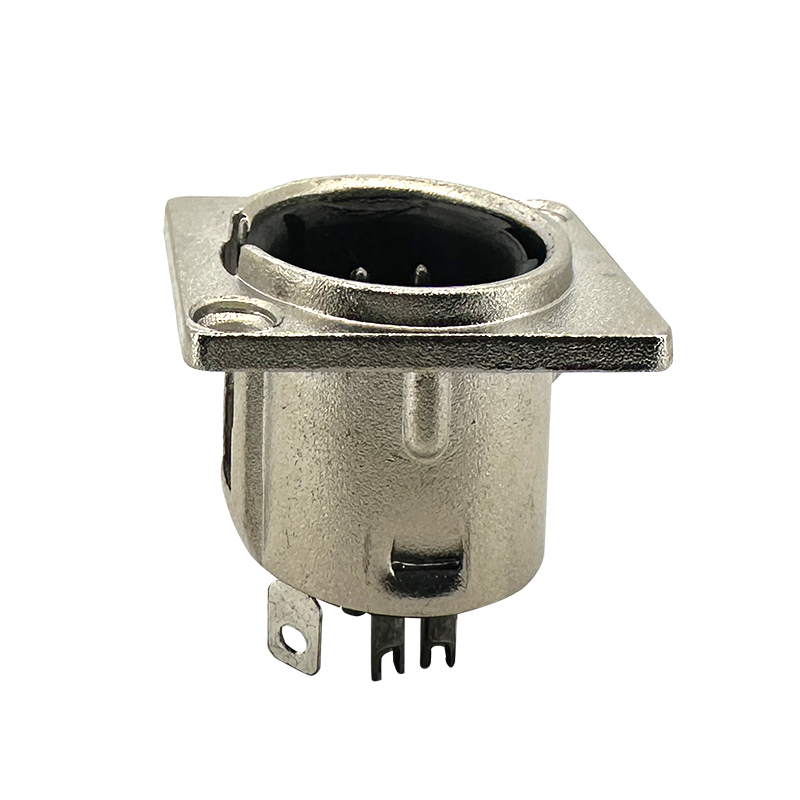

XLR Socket Connector:RHTAYLR-S05

Series P/N:RHTAYLR-S05

XLR connectors is available at RHT.

We have been selling on the markets many years and get good feedback.

Please view our large selection of XLR connectors. Any questions,Please contact our sales team to get any service support.

If you need any samples,quick L/T, and etc, we will try our best to support.

3D(IGS / STP)Drawing

Product parameter:

Features

-Three-Pin Configuration: XLR socket connectors typically have three pins arranged in a circular pattern within a metal housing. Each pin serves a specific function: ground (pin 1), positive signal (pin 2), and negative signal (pin 3). This configuration allows for balanced audio signal transmission, which minimizes noise and interference over long cable runs.

-Robust Construction: XLR socket connectors are constructed from durable materials such as zinc, nickel-plated brass, or other metals. This robust construction ensures mechanical strength and durability, making them suitable for frequent use in professional environments.

-Latch Locking Mechanism: Similar to XLR plug connectors, XLR socket connectors feature a latch or locking mechanism. This mechanism securely holds the mating XLR plug in place, preventing accidental disconnection during use. It provides a reliable and stable connection, crucial for live sound, broadcast, and stage applications.

-Shielded Design: XLR socket connectors are designed with a shielded housing and connections. This shielding helps protect the audio signal from electromagnetic interference (EMI) and radio frequency interference (RFI), ensuring clean and noise-free signal transmission.

Applications

1.Broadcasting and Recording

2.Video Production

3.Lighting Control

4.Intercom Systems

Specifications

Contact resistance: ≤ 0.03Ω

Insulation resistance: ≥ 100mΩ

Withstand voltage: 500V AC (50Hz)/minute

Rated load: 50V DC, 1A

Insertion and extraction force: 4-40N

Temperature range: -30° C to + 80° C
