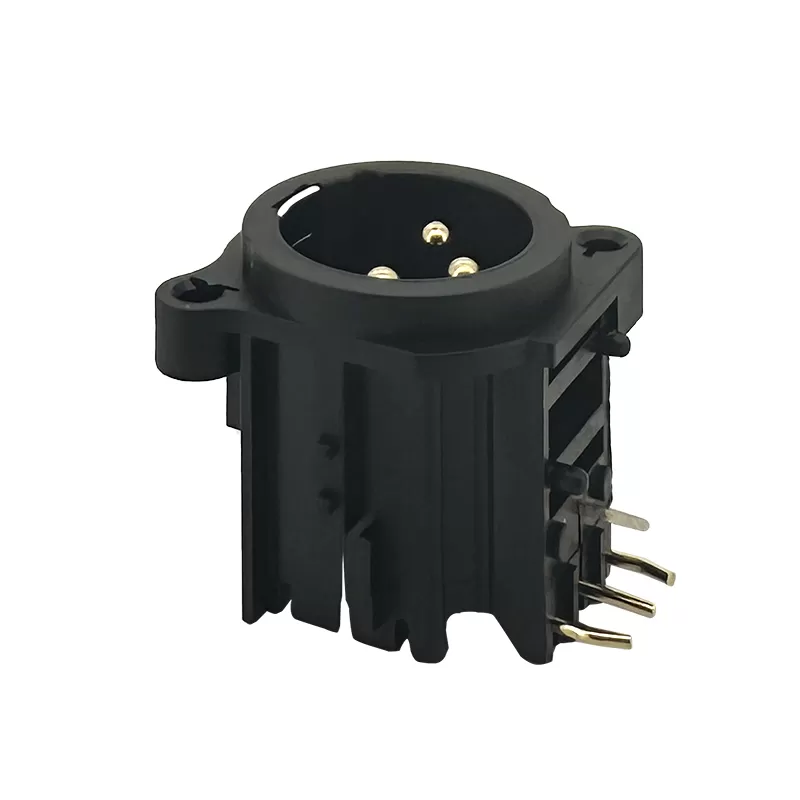

XLR Socket Connector :RHTAYLR-S09

Series P/N:RHTAYLR-S09

XLR connectors is available at RHT.

We have been selling on the markets many years and get good feedback.

Please view our large selection of XLR connectors. Any questions,Please contact our sales team to get any service support.

If you need any samples,quick L/T, and etc, we will try our best to support.

3D(IGS / STP)Drawing

Product parameter:

Features

-Shielded Design: XLR socket connectors are designed with a shielded housing and connections. This shielding helps protect the audio signal from electromagnetic interference (EMI) and radio frequency interference (RFI), ensuring clean and noise-free signal transmission.

-Versatility: XLR socket connectors are versatile and compatible with a wide range of XLR plug configurations, including male and female plugs. They accommodate different types of XLR cables and connectors, allowing flexibility in wiring setups.

-Panel Mounting: XLR socket connectors are typically panel-mounted, meaning they are designed to be installed onto the surface of a device or equipment panel. This allows for convenient access to audio connections on audio consoles, rack-mounted equipment, and other professional gear.

-Standardization: XLR socket connectors adhere to industry standards (such as AES and IEC standards) for dimensions and pin configurations. This standardization ensures compatibility across different manufacturers and equipment, facilitating interoperability in professional audio systems.

Applications

1.Broadcasting and Recording

2.Video Production

3.Stage and Live Performances

4.Public Address Systems

Specifications

Contact resistance: ≤ 0.03Ω

Insulation resistance: ≥ 100mΩ

Withstand voltage: 500V AC (50Hz)/minute

Rated load: 50V DC, 1A

Insertion and extraction force: 4-40N

Temperature range: -30° C to + 80° C
