As a leading Socket Connectors Manufacturer, RHT specialized in producing high-quality IC sockets and other socket connectors essential for modern electronic devices. Our products ensure reliable performance, protection, and ease of use for integrated circuits, supporting a broad range of applications from consumer electronics to industrial systems.

What is an IC Socket Connector?

An IC Socket Connector plays a critical role in electronic devices, especially for those that incorporate integrated circuits (ICs). These connectors prevent ICs from being directly soldered to the circuit board, protecting the sensitive microchips from potential heat damage during soldering. IC sockets, including the popular 16 Pin Socket, facilitate easy installation and replacement of ICs, making maintenance simpler without compromising the integrity of the circuit board.

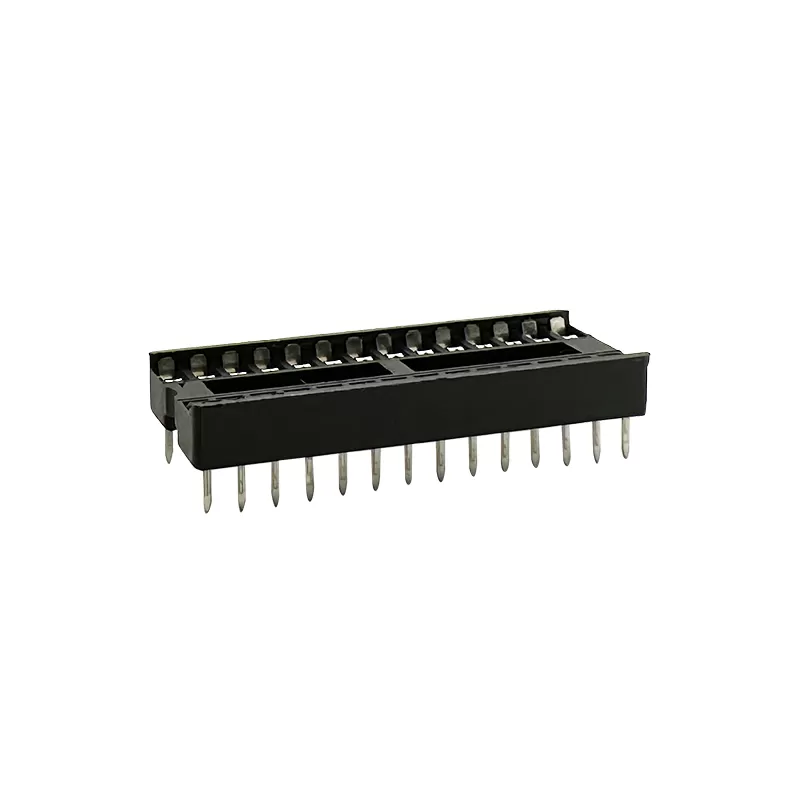

• Dual-In-Line (DIL) Sockets: The most common type of IC socket, DIL sockets feature two rows of contacts separated by a rectangular thermoplastic insulator.

• Other Configurations: Additional types include right-angle mount IC sockets and press-fit IC sockets, which accommodate various design needs.

PLCC Socket Connector: Enhanced Support for Integrated Circuits

PLCC Socket Connectors (Plastic Lead Chip Carrier) are specifically designed to support JEDEC Type A chips on a 1.27mm pitch. This socket’s low-profile design helps reduce overall product height, making it ideal for space-constrained applications.

Key Features of PLCC Socket Connectors

• JEDEC Compliance: Conforms to EIA JEDEC Outline (Type A) for Plastic Lead Chip Carriers.

• Enhanced Stability: Features closed bottoms to prevent solder wicking and polarization indicators for proper alignment.

• Optimal Cooling: Open centers and standoffs allow for thorough cooling and cleaning post-soldering.

Applications of PLCC Socket Connectors

PLCC socket connectors are used in a variety of devices, including:

• Consumer Electronics: Widely used in desktop computers, HVAC systems, and vending machines.

• Industrial and Medical Equipment: Found in high-precision equipment requiring compact and durable socket connectors.

ZIF Socket Connector: Reliable and Easy-to-Use Connections

Our ZIF Socket Connectors (Zero Insertion Force) are designed for applications requiring high-performance power and signal connectivity. Used across medical, commercial, and industrial markets, ZIF connectors offer a unique solution for high pin-count applications with minimal insertion force.

Key Features of ZIF Socket Connectors

• High Pin Count Options: Available in 60, 96, 156, 260, and 360 contact positions.

• Long Lifespan: Rated for over 10,000 mating cycles, ensuring durability and reliability over extended use.

• Enhanced Protection: Includes EMI/RFI shielding and environmental protection, making it suitable for critical applications.

Applications of ZIF Socket Connectors

ZIF connectors are commonly used in applications such as:

• Medical Devices: Providing reliable connectivity in medical equipment.

• Computer and Industrial Equipment: Supporting high-performance machines and systems that demand frequent assembly and disassembly.

Why Choose RHT?

As a top Socket Connectorsmanufacturer, RHT offers a wide range of connectors, including IC Socket Connector, ZIF Socket Connector, and PLCC Socket Connector. Our products are manufactured to the highest standards, ensuring:

• Durability and Longevity: Designed for extensive use, with products like ZIF connectors rated for thousands of cycles.

• Easy Maintenance: IC sockets allow for easy insertion and replacement, protecting the PCB from damage.

• Customization Options: We provide socket connectors in a variety of configurations, from the versatile 16 Pin Socket to specialized PLCC and ZIF connectors.

With a global reputation as a trusted Socket Connectors Manufacturer, we are dedicated to supplying reliable, high-quality products that meet the demands of modern electronic applications. From IC sockets to specialized connectors, our extensive portfolio ensures quality and flexibility for a wide range of industries. Choose our Socket Connectors Manufacturer for your next project to guarantee exceptional performance and longevity.
